Megger SPI500 Smart Primary Injection Test System | Up to 6,500 A

The Problem with Traditional Primary Injection Testing

Ask any protection engineer or substation maintenance technician what slows down a primary injection job, and you’ll hear the same answers: constant manual adjustment to keep current stable, inconsistent results caused by test lead heating, DC offset throwing off instantaneous trip readings, and lugging oversized test sets between switchgear bays. Traditional high-current test systems require the operator to turn on the output, then manually chase the current setpoint as the load impedance drifts — a process that introduces human error and makes repeat testing difficult to standardise.

Self-powered reclosers compound this problem significantly. Devices like the S&C TripSaver II or NOJA EcoLink draw heavily from the line current to charge internal capacitors, then drop back to a low-impedance state once fully charged. That cycle creates wild swings in load impedance that no traditional primary injection set can track fast enough. The result is unstable current output, failed test attempts, and uncertainty about whether the protection device actually performed to spec.

For Australian utilities, network operators, and electrical contractors maintaining distribution and substation infrastructure, this is not a minor inconvenience — it’s a compliance and safety issue. Accurate primary injection results underpin the integrity of every overcurrent protection scheme they commission or service.

---

The Megger SPI500: Smart Injection, Accurate Results

The Megger SPI500 Smart Primary Injection Test System was engineered specifically to solve these problems. Its defining capability — sub-cycle current regulation — sets it apart from every conventional primary injection set on the market. The SPI500 continuously monitors the output waveform and adjusts its firing angle in real time, maintaining the programmed current setpoint even as load impedance changes within the same AC cycle. No manual intervention. No current decay. No compromised results.

For self-powered recloser testing, this means the SPI500 can hold steady current through full power cycles of devices like the S&C TripSaver II, Siemens Fusesaver, Hubbell VersaTech II, NOJA EcoLink, and ABB Eagle — without the operator needing to chase the current or restart the test sequence. Trip times and reclose intervals are automatically recorded and compared against pre-loaded TCC curves, so pass/fail evaluation happens on the spot.

For circuit breaker testing, the SPI500’s automatic zero-crossing switching and firing angle control eliminates DC offset in the initial output waveform — a common source of false instantaneous trip results. This conforms to the ANSI/NEMA AB 4-2023 standard, ensuring that test results are defensible and correctly reflect the breaker’s actual trip performance.

---

Portable Power That Goes Where the Work Is

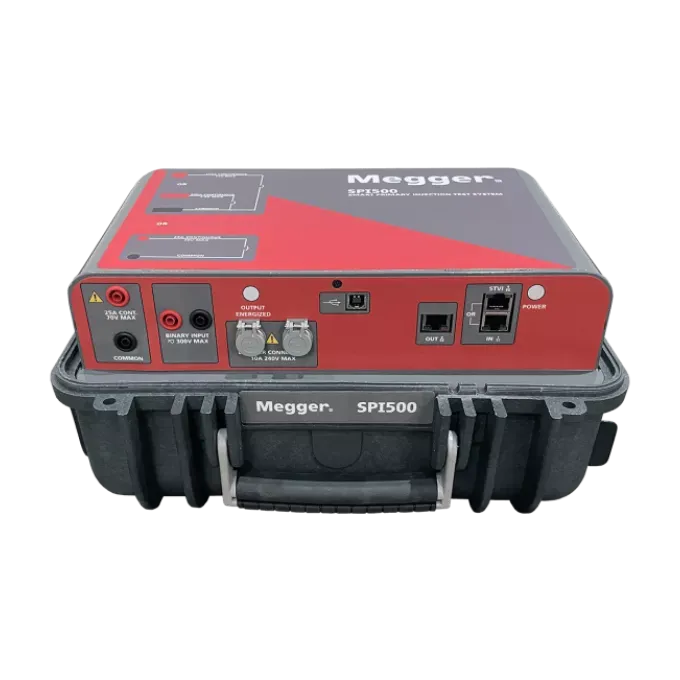

One of the SPI500’s most practical advantages is its power-to-weight ratio. At just 21.5 kg (47.5 lb) for the standard unit, it delivers continuous 2,500 A output from a package that a single technician can manage in the field. Compare that to older primary injection rigs that required two people to lift and a dedicated transport vehicle.

For jobs that demand higher current, the SPI500 accepts up to two SPI500B booster units connected in parallel or series via umbilical cords, scaling output to 5,000 A with one booster and up to 6,500 A with two. Critically, boosters are powered by the main SPI500 unit — only one power cord is needed at the test site, simplifying setup. The system accepts 115/230 V AC (auto-detecting on the standard N model) or 230 V on the CE-compliant version, giving it flexibility across different site power supplies including 240 V single-phase supplies common in Australian substations.

---

Two Ways to Control, One Consistent Result

The SPI500 supports both manual and fully automated test workflows.

Manual Control via STVI: The optional Smart Touch View Interface (STVI-10) is a handheld touchscreen controller that provides clear, menu-driven access to all standard primary injection test functions without the need for a laptop. Its simplified interface means any qualified technician can operate the unit effectively, even infrequent users. Tests can be set up, run, and reviewed directly from the touchscreen.

Automated Control via PC Software: For formal commissioning work, fault investigations, or multi-device testing campaigns, the SPI software provides full test automation and report generation. It comes pre-loaded with hundreds of circuit breaker TCC curves and supports testing of all standard breaker parameters: long-time pick-up, long-time timing, short-time pick-up, short-time timing, instantaneous pick-up, ground fault pick-up, and ground fault timing. Results are logged to the PowerDB database for traceable record-keeping and client report generation.

For self-powered recloser testing, the workflow is as streamlined as it gets: select the recloser model, enter the test settings, press play. The SPI500 runs the full shots-to-lockout sequence automatically, recording each trip time and reclose interval against the device’s published TCC curve.

---

Built for Substation Conditions

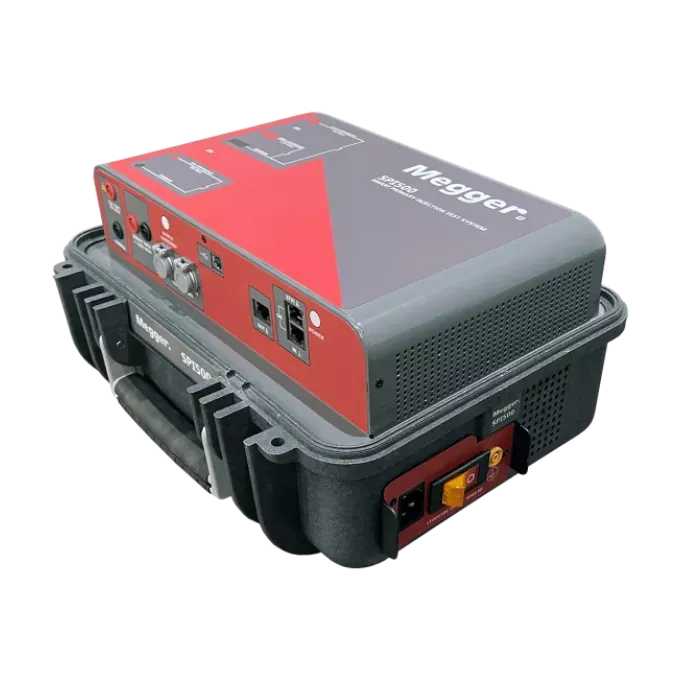

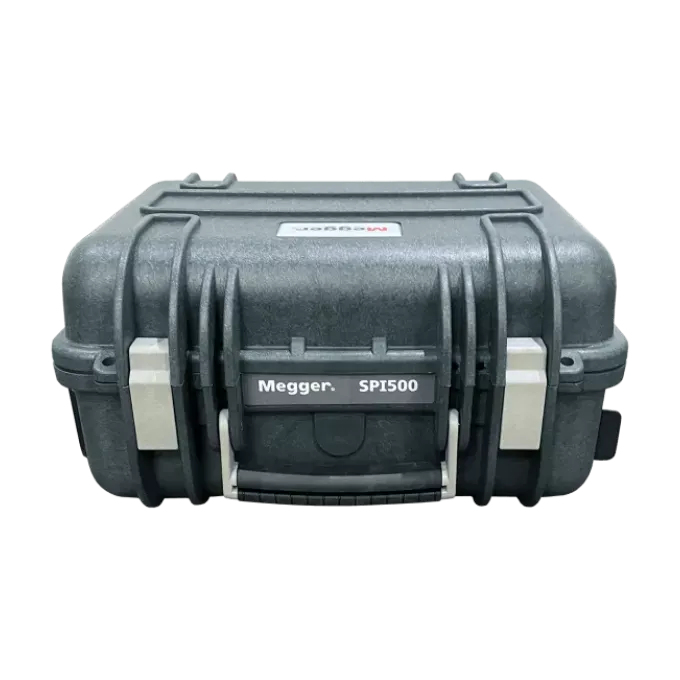

Primary injection test sets live a hard life — they go in and out of transit cases, get used in switchyards with vibration and temperature extremes, and endure years of field service. The SPI500 is built accordingly. Its enclosure and internal components are rated to IEC/EN 60068 standards for shock (EN/IEC 60068-2-27), vibration (EN/IEC 60068-2-6), free fall (EN/IEC 60068-2-32), and drop/topple (EN/IEC 60068-2-31). The transit case option (Part No. 1016-822) adds IP67 waterproof protection, stainless steel hardware, polyurethane wheels, and padlock protection for teams working in exposed outdoor switchyards.

Thermal and overcurrent protection is built in — temperature sensors monitor the unit and prevent damage from sustained overload, while fuse and circuit breaker protection devices guard the output circuitry. Operating temperature range is 0 °C to 50 °C, with storage from -30 °C to 70 °C, covering the full range of Australian climate conditions from alpine substations to outback switching stations.

---

Applications by Trade Persona

Utility and Network Maintenance Teams Scheduled maintenance on distribution feeders requires systematic testing of all overcurrent and recloser protection. The SPI500’s pre-loaded TCC curve library and PowerDB reporting make it straightforward to document compliance with AS/NZS protection coordination standards and internal network codes. The booster expansion capability means one platform covers everything from 200 A moulded case breakers through to 6,500 A air circuit breakers.

Protection Engineers — Commissioning New installations and asset replacements require formal primary injection witness testing to verify that each protection element operates within its specified tolerances. The SPI500’s automated test sequences and PC-based report generation produce the documentation needed for project sign-off, asset handover packages, and client compliance records.

Electrical Contractors — LV Switchboard Commissioning The SPI500 isn’t just a substation tool. Its 25 A / 70 V output tap makes it equally capable for testing low-voltage moulded-case circuit breakers in commercial and industrial switchboards, where verifying trip curves before energisation is standard practice under AS/NZS 3000.

Recloser Specialists — Distribution Networks For teams responsible for maintaining self-powered reclosers on overhead distribution lines, the SPI500’s sub-cycle regulation capability is the game-changer. No other portable primary injection set on the market can reliably test the full shots-to-lockout sequence of modern electronic reclosers without current instability. The included recloser library covers the most widely deployed devices in Australian distribution networks.

---

Why Source from Us

We’re an Australian test and measurement specialist, not a generalist tool catalogue. When you order a Megger SPI500 through us, you’re dealing with a team that understands the difference between a recloser test and a breaker test, and can advise on the right tap selection, booster configuration, and accessory lead set for your specific application.

We support NATA-traceable calibration for Megger instruments, ensuring your SPI500 remains compliant with AS/NZS and IEC calibration requirements throughout its service life. All Megger products we supply come with Australian warranty coverage and access to Megger’s local technical support network.

---

Technical Specifications

---

What is a smart primary injection test system?

A smart primary injection test system is a high-current electrical testing instrument used to verify the operation of overcurrent protection devices — including circuit breakers, reclosers, high-speed fuses, and ground fault relays — by injecting test current directly through the primary conductors of the protected circuit. Unlike conventional primary injection sets, smart systems like the Megger SPI500 use closed-loop control to automatically regulate output current in real time, compensating for impedance changes and thermal drift without operator intervention. This produces more consistent, repeatable results and eliminates the manual current-chasing required with older systems.

---

What is the Megger SPI500 used for?

The Megger SPI500 is a portable high-current primary injection test system used for commissioning and maintenance testing of substation protection equipment. Its primary applications include: testing self-powered electronic reclosers (such as the S&C TripSaver II and NOJA EcoLink) through full shots-to-lockout sequences; verifying trip curve performance of circuit breakers from low-voltage moulded-case types through to large substation air circuit breakers; testing high-speed fuses; and verifying ground fault relay pickup and timing. It can be used as a standalone 2,500 A unit or expanded to 6,500 A with optional SPI500B booster units.

---

How does the SPI500 differ from conventional primary injection test sets?

The key differentiator of the Megger SPI500 is its sub-cycle current regulation — the ability to dynamically adjust output voltage within the same AC cycle to maintain constant current, even when device impedance changes rapidly. Conventional primary injection sets cannot track fast impedance changes and produce unstable output during self-powered recloser testing. The SPI500 also eliminates DC offset via automatic zero-crossing switching and firing angle control (conforming to ANSI/NEMA AB 4-2023), preventing false instantaneous trip readings. Additionally, it compensates automatically for current decay caused by test lead heating, removing the need for continuous manual adjustment throughout a test.

---

What current output does the Megger SPI500 produce?

The Megger SPI500 produces a continuous output of up to 2,500 A as a standalone unit. With one SPI500B booster connected in parallel, the system scales to 5,000 A. With two boosters, maximum output reaches 6,500 A. The unit features three output taps: 500 A at 3.5 V maximum compliance voltage, 125 A at 14 V, and 25 A at 70 V. The 500 A and 125 A taps are used for heavy substation breaker and recloser testing; the 25 A tap at higher compliance voltage is suited for LV circuit breaker and relay testing. All ratings are based on 240 V input operation.
