Megger Contractor Kit | MIT310 Insulation Tester + TC256 Thermal Camera

Two jobs, two instruments — one complete toolkit

Every electrical job really asks two questions. Is it safe and to standard? And what’s about to go wrong? The first is a compliance question — you answer it with hard numbers from an insulation and continuity tester. The second is a condition question — you answer it by seeing heat build up before it becomes a failure. Most contractors carry one tool and guess at the other.

The Megger Contractor Kit pairs the instruments that answer both, properly. The MIT310 Insulation & Continuity Tester delivers the certifiable measurements that prove an installation meets AS/NZS 3000. The TC256 256×192 Thermal Camera then scans the live, loaded system and reveals the hot spots, loose lugs and weak connections a multimeter will never flag. Verification and prevention, bundled — so you turn up to site with the full picture, not half of it.

The MIT310: prove it’s safe, in numbers that stand up

Insulation resistance and earth continuity are the backbone of installation safety. A degraded cable, a nicked sheath, a damp junction, a high-resistance earth path — none of these show on a visual inspection, but all of them can put a circuit (and a person) at risk. The MIT310 measures them directly.

It’s the mid-range model in Megger’s MIT300 contractor series, built specifically around the way electricians work in the field. You get insulation testing at 250 V, 500 V and 1000 V DC across a range up to 999 MΩ — the 500 V test being the everyday standard for verifying low-voltage installations under AS/NZS 3000, with 1000 V on hand for circuits that call for it. Continuity testing runs at a full 200 mA down to 0.01 Ω, with a fast-reacting buzzer (<5 Ω) and a lead-nulling function so the resistance of your test leads never skews the reading. The MIT310 also adds a default voltmeter function (up to 600 V AC/DC) over the base MIT300 — so you can confirm a circuit is dead before you commit to a test, without reaching for a second instrument.

Megger built safety into the hardware, not just the manual. Apply the probes to a live circuit and the MIT310 warns you audibly and visually; above the live-circuit threshold it inhibits the insulation test outright, and it automatically discharges capacitance after every insulation test so the circuit is safe to handle. The whole thing is rated to IEC 61010-1 CAT III 600 V, wrapped in an impact-resistant rubber-overmoulded case, sealed to IP54, and backed by a 3-year warranty. Its digital-plus-analogue display shows a precise numeric value alongside a moving-arc bar graph — the responsiveness of an analogue needle with the clarity of a digital readout, which matters when you’re watching insulation resistance settle or hunting an intermittent fault.

The TC256: see the fault before it fails

A passed insulation test tells you the installation is sound today. It doesn’t tell you which connection is quietly cooking under load. That’s where the TC256 comes in — and why these two belong in the same kit.

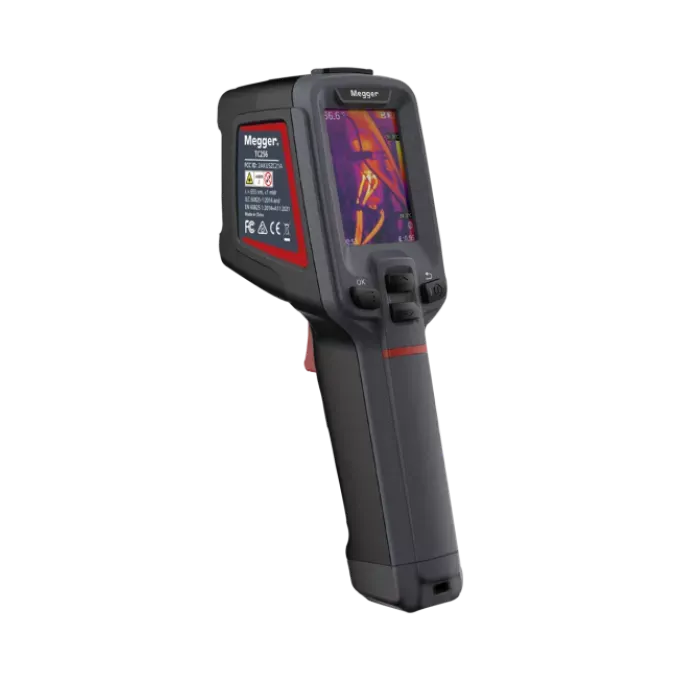

The TC256 is a 256×192 handheld thermal camera that turns invisible heat into a clear, measurable image. Run it across an energised switchboard and a loose or corroded termination lights up as a defined hot spot; walk a solar array and shaded cells, bypassed diodes and warm DC connectors stand out instantly. With 45 mK thermal sensitivity, super-resolution to 512×384, four imaging modes (including fusion that ties each hot spot to the exact asset), and a -20 °C to 550 °C range, it’s sensitive and detailed enough to catch faults at the early stage — when they’re a scheduled repair, not an after-hours callout.

It’s built for the same rough life as the MIT310: IP54, a 2 m drop rating, an ~11-hour battery, 16 GB of onboard storage, and WiFi plus a mobile app for reporting straight from site. (Full thermal specs are on the TC256 product page.)

Why the pairing works — the contractor’s two-step

Used together, these instruments create a workflow that’s faster and more thorough than either alone:

1. De-energise and verify with the MIT310. Confirm dead with the voltmeter, then test insulation resistance and earth continuity to prove the installation meets AS/NZS 3000 / AS/NZS 3017. Document the numbers.
2. Re-energise and scan with the TC256. With the system under real load, sweep the board, busbars, connections and terminations thermally. The meter proved it’s built right; the camera proves it’s running right — and flags anything trending toward failure.

That’s the difference between signing off a job and standing behind it. One instrument certifies compliance; the other catches the faults that develop after sign-off. For an electrical contractor, a solar O&M crew, or a facilities maintenance team, it’s the most practical two-tool combination you can carry.

Built for Australian trade work

Both instruments ship calibrated with a certificate, and Megger recommends annual recalibration — keep that NATA-traceable through your supplier and your test records carry a recognised chain of accuracy for compliance, insurance and audit. The TC256 includes an AU plug adaptor so it’s ready for a standard GPO out of the box, and the MIT310 runs on standard AA cells (around 5,000 tests per set) so there’s never a flat-battery excuse on site. The MIT310’s 250/500/1000 V insulation and 200 mA continuity functions map directly onto the verification work demanded by AS/NZS 3000 and AS/NZS 3017, while the TC256 supports the condition-based and predictive maintenance practices that underpin ISO 55000 asset management and PV inspection (per the principles of IEC 62446-1 on AS/NZS 5033 systems).

Buy the two as a kit and you’ve covered the full job — proving safety and finding faults — with gear from a brand Australian trades already trust.

---

What’s in the Kit

---

Technical Specifications — MIT310 Insulation & Continuity Tester

---

Technical Specifications — TC256 Thermal Camera (Summary)
