Discover the Keysight InfiniiVision HD3 Series Oscilloscope — HD304MSO and HD302MSO
Unlock Precision, Performance, and Portability
Introducing the Keysight HD3 Series Oscilloscope – the next generation in high-performance, portable test and measurement equipment. This series features two models: the HD304MSO and the HD302MSO. The HD3 Series incorporates advanced technology from our renowned UXR Series oscilloscopes, ensuring you have the precision you need in a compact form factor. With a custom 14-bit ADC and a unique low noise front end, the HD3 Series provides unmatched signal analysis and measurement accuracy.
Unparalleled Accuracy with Custom Technology

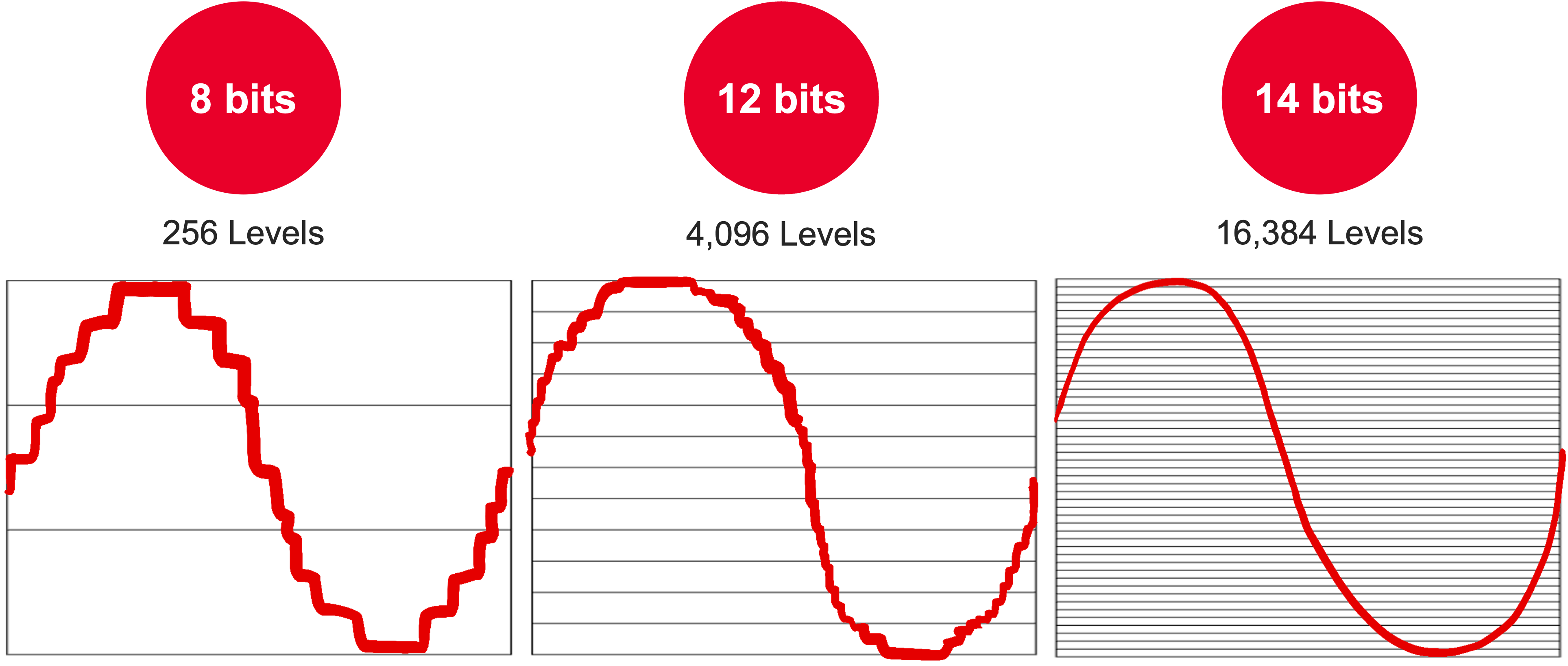

The HD3 Series is crafted with custom components designed specifically for oscilloscope measurements. These include a brand-new 14-bit ADC and an all-new ASIC that provide both speed and efficiency. This custom architecture allows the HD3 to capture small signals with high vertical resolution, ensuring that even the tiniest variations in your signal are accurately reflected.
Low Noise

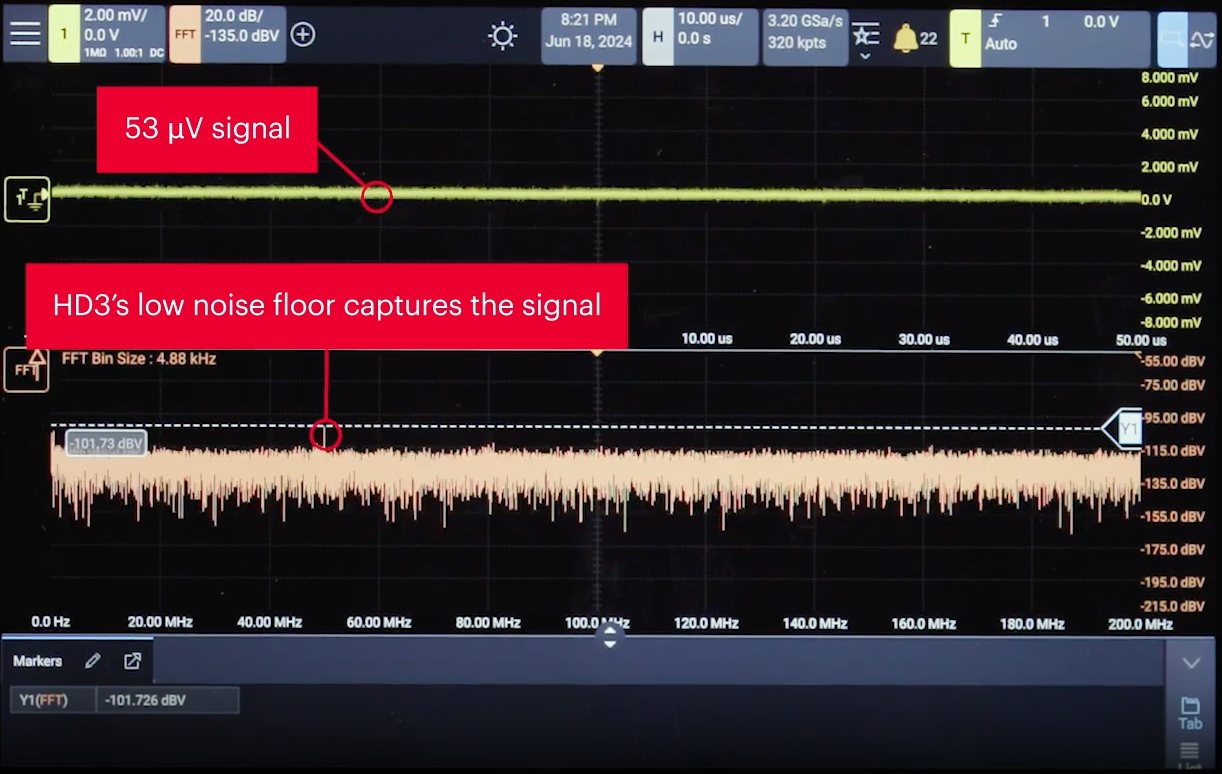

Capture smaller signals with a 50 µVRMS noise floor
All electronic devices, including oscilloscopes, generate some noise. Minimizing this noise is crucial for accurate measurements. A lower noise floor means the oscilloscope has less impact on the signal, ensuring precision.
The Keysight InfiniiVision HD3 sets a new benchmark with a 50 µVRMS noise floor at full 1 GHz bandwidth. Enhance performance further with bandwidth limiting and waveform averaging options on the HD3.
Advanced Features for Sophisticated Analysis
Experience even greater accuracy with the HD3 Series’ built-in bandwidth filters that allow up to 16 bits of resolution. This feature provides five times better resolution, enabling you to capture every detail of your signal. Need to use the full bandwidth up to 1 GHz? The HD3 delivers extremely high accuracy at full bandwidth with the ability to zoom to 500 uV/div.
Deep Memory and Maximum Sample Rate
The HD3 Series features deep memory with dedicated memory chips for every channel, offering 100 Mpts and no interleaving. You can operate all four channels at maximum memory and sample rate, assuring precise data capture and analysis on every channel. Keysight’s MegaZoom 5 ASIC enables hardware-based functions such as zone trigger, serial decoding, and mask testing, ensuring fast and reliable performance.
Cutting-Edge Fault Hunter Software
The HD3 Series includes the innovative Fault Hunter software application, an expert system designed for inspecting digital systems. Fault Hunter automatically evaluates your signal’s characteristics against user-definable criteria, quickly identifying and saving errors for your review. You can define the test duration, from a few minutes to several days, enabling comprehensive testing and detailed reports.
Versatility Meets User-Friendly Interface
Dive deeper into your signal analysis with a flexible and advanced user interface. The HD3 Series offers more menus and user customization options, allowing you to set up your oscilloscope to meet your specific testing requirements. Features such as the custom grid display, favorites bar, and automatic actions make it easier to navigate your characterization process and review results efficiently.
Upgradeable and Equipped for Advanced Testing
All models in the HD3 Series can be easily upgraded in bandwidth or memory using immediate license upgrades—no factory returns required. Standard features, typically costing thousands of dollars, come equipped in every HD3 model, including:
- Frequency response analysis
- Fault Hunter
- Zone trigger
- Segmented memory
- Mixed signal oscilloscope (MSO)
- Mask testing
- Histograms
- Fast Fourier Transform (FFT) analysis, and more
MegaZoom 5 ASIC: Revolutionizing Oscilloscope Performance
The all-new MegaZoom 5 ASIC pushes the boundaries of performance for the InfiniiVision HD3 Series. Unlike conventional oscilloscopes where CPU processing creates bottlenecks, MegaZoom 5 enables certain operations to be performed directly in hardware. This includes serial decoders, mask limit testing, and plotting analog and digital data. The reduction in CPU dependency ensures a faster, more efficient workflow, providing you with the most realistic view of the signals inside your device.
Experience the Future with HD3 Series
Whether you’re conducting basic signal integrity checks or performing complex analyses, the Keysight InfiniiVision HD3 Series Oscilloscope is equipped to meet your needs. Its advanced features, custom technology, and user-friendly interface set a new standard for precision and performance in portable oscilloscopes.
Shop Now and Elevate Your Measurement Accuracy
Don’t miss out on the opportunity to enhance your testing capabilities. Purchase the Keysight InfiniiVision HD3 Series Oscilloscope today and see what you’ve been missing with portable precision.
