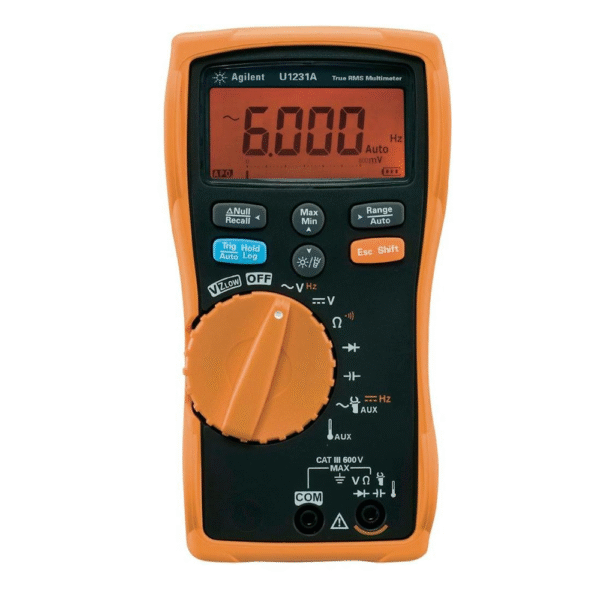

  Keysight U1230 Series Digital Multimeters
Keysight U1230 Series handheld digital multimeters are designed to perform in poor environmental conditions and worst-case scenarios.
With the built in flashlight, the ergonomic shaped handheld digital multimeter allows you to single handedly illuminate the test area while selecting measurements functions using the anti-slip rotary dial making it much easier whilst working in low light environments.
For improved safety the U1230 series digital multimeters also allow you to run continuity tests with visual (flashing backlight display) and audible (beeper) alerts.
Vsense performs non-contact voltage detection. This battery powered handheld digital multimeter features true rms readings with a 6000 count, 3 1/2 digit display and analogue bar graph results without the complications.
Features & Benefits
- Display resolution: 6,000 counts
- True RMS
- Analogue bar graph
- AC bandwidth 45Hz → 1kHz
- Auto/manual ranging
- Vsense to perform non-contact voltage detection
- Data logging capability (stores up to 10 readings)
- IR-to-USB connectivity to transfer data to PC for record
- Built-in LED flashlight to illuminate test area
- Flashing backlight as additional visual alert during continuity tests in noisy areas
- Operating temperature: -10 → 55 °C, 0% → 80% RH
- Dimensions (H x W x D) 169 x 86 x 52 mm
- Battery (included) 4 x 1.5V AAA Alkaline battery
- Battery life: 500 hours
The U1230 series digital multimeters measures
- AC/DC voltage & current
- Resistance
- Voltage frequency
- Diode Test
- Continuity
- Capacitance
Non-contact voltage detection with Vsense
