HT Instruments HT PVCHECKS-ONE Solar Tester 1000V | AS/NZS 5033 Compliant

Transform solar commissioning workflows with the HT Instruments HT PVCHECKS-ONE multifunction tester. Purpose-built for Australian solar installers tackling AS/NZS 5033:2021 compliance, this advanced diagnostic tool eliminates the need for multiple instruments. One-touch “GO” operation automatically performs insulation resistance, Voc, Isc, continuity, and polarity tests on mono and bifacial modules up to 1000V/30A. Features revolutionary DUAL function for insulation testing without external shorting switches, plus Bluetooth connectivity with optional SOLAR03 environmental monitoring. Ships with factory calibration certificate.

PVCHECKs-ONE Brochure

PVCHECKs-ONE Datasheet

SKU: HV00PVPR Categories: HT Italia, Photovoltaic (PV) Testers, Test Equipment For Solar PV Tag: Solar Measurement Brand: HT Instruments

Stop Wrestling with Multiple Instruments During Solar Commissioning

Anyone who’s commissioned solar installations knows the drill: juggling multiple meters, manually shorting DC terminals for insulation tests, climbing on and off roofs repeatedly to verify string performance, then spending hours compiling test results for compliance documentation. When you’re racing daylight to complete AS/NZS 5033 commissioning on a 50kW commercial array, every minute counts.

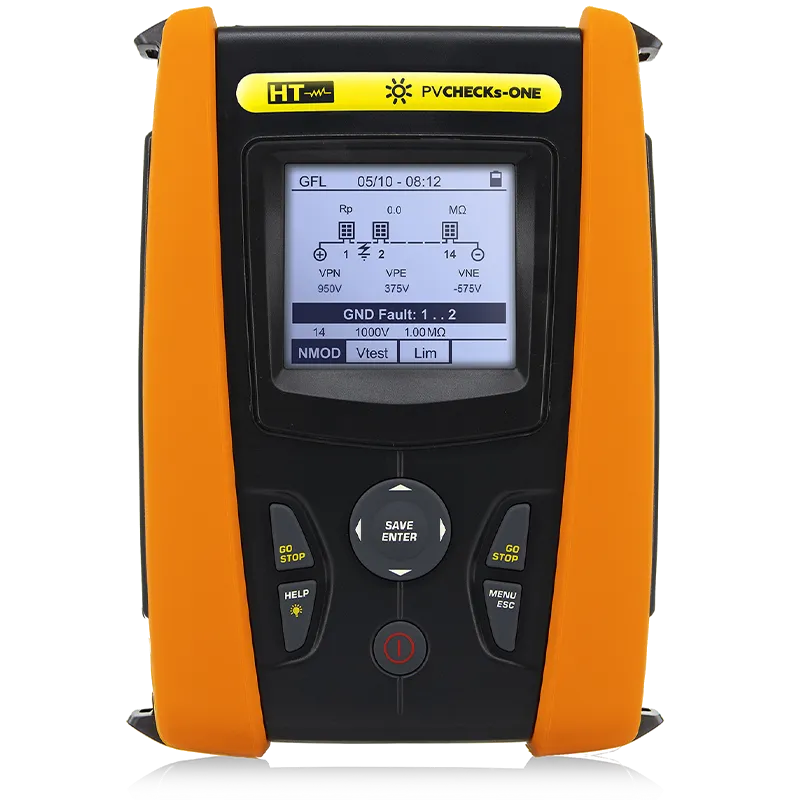

The HT Instruments HT PVCHECKS-ONE multifunction commissioning tester cuts through this complexity with a single-instrument solution designed specifically for modern PV installations. Whether you’re commissioning residential arrays under the Clean Energy Council guidelines or managing large-scale solar farms, this Italian-engineered diagnostic platform delivers comprehensive electrical safety verification and performance testing without the equipment juggling act.

One Button, Complete Commissioning Test Sequence

The standout feature that separates PVCHECKS-ONE from conventional testing approaches is the automated “GO” function. Connect to your array’s DC terminals, press one button, and the instrument executes the complete electrical safety test sequence required by IEC/EN 62446 and AS/NZS 5033:2021. Within minutes, you’ll have verified continuity of protective conductors, confirmed polarity, measured open-circuit voltage, tested short-circuit current, and performed insulation resistance testing—all documented with pass/fail indicators.

For solar installers working through combiner boxes on commercial installations, the AUTOSTART mode enables sequential testing of all strings without manual intervention between measurements. Connect once, initiate testing, and the PVCHECKS-ONE automatically advances through each string in the combiner, documenting results as it progresses. This workflow efficiency translates directly to reduced labour costs and faster project completion.

Revolutionary DUAL Function Eliminates External Shorting Hardware

Here’s where PVCHECKS-ONE represents genuine innovation in PV testing methodology. Traditional insulation resistance testing on photovoltaic arrays requires physically shorting positive and negative DC terminals with an external switch before connecting your insulation tester. This means additional hardware to carry, extra connection steps, and increased opportunities for measurement error or safety incidents.

The PVCHECKS-ONE’s patented DUAL function performs insulation resistance measurements at 250V, 500V, or 1000V DC test voltages without requiring external shorting equipment. Whether you’re testing a single module, an entire string, or a complete PV array, the instrument handles terminal shorting electronically while simultaneously measuring insulation to ground from both positive and negative conductors. You receive three critical measurements—total parallel resistance, positive pole resistance to ground, and negative pole resistance to ground—identifying exactly where insulation degradation exists.

This capability proves particularly valuable when troubleshooting installations with suspected ground faults. The included GFL (Ground Fault Locator) function identifies precisely between which modules in a string an insulation problem exists, eliminating the guesswork from fault diagnosis and dramatically reducing repair time.

Real-World Performance Testing Under Operating Conditions

AS/NZS 5033:2021 requires verification that installed modules perform according to manufacturer specifications. The PVCHECKS-ONE measures open-circuit voltage (Voc) up to 1000V and short-circuit current (Isc) up to 30A under actual operating conditions, then mathematically refers these measurements to Standard Test Conditions (STC) when paired with the optional SOLAR03 environmental monitoring unit.

The SOLAR03 remote unit (sold separately) wirelessly connects via Bluetooth BLE and simultaneously measures front-side irradiance using the HT305 reference cell, module temperature via PT305 probe, and array inclination angle. Real-time environmental data feeds into PVCHECKS-ONE’s performance algorithms, delivering accurate STC-corrected results that can be compared against manufacturer datasheets for compliance verification.

For installers working with bifacial modules—increasingly common in commercial and utility-scale installations—the optional KIT BIFACIALONE (2× HT305 cells + SOLAR03) enables simultaneous measurement of front and rear irradiance, accounting for ground reflection and backside gain in performance calculations.

OPT Function: Testing Arrays with Module-Level Power Electronics

Modern PV installations increasingly incorporate module-level power electronics (MLPE) such as DC optimizers, rapid shutdown devices, and microinverters. These devices present challenges for traditional insulation testing because their internal circuitry can interfere with test voltages, often requiring disconnection before testing—a time-consuming process on large installations.

The PVCHECKS-ONE’s OPT function specifically addresses this installation reality. When testing strings equipped with SolarEdge optimizers, Tigo devices, or similar MLPE equipment, the OPT mode applies modified test protocols that obtain valid insulation measurements without requiring disconnection of optimizers from modules. This feature alone saves hours on commercial installations with hundreds of optimized modules.

Built for Australian Solar Installation Environments

Australian solar installers face unique environmental challenges—extreme UV exposure, temperature swings from sub-zero mornings to 45°C+ afternoons, coastal salt air corrosion, and red dust that infiltrates everything. The PVCHECKS-ONE’s CAT III 1000V AC, CAT III 1500V DC measurement category rating and robust Italian construction handles these conditions while maintaining measurement accuracy.

The instrument ships with MC4-compatible connection adapters (KITPCMC4), four-colour alligator clip test leads (KITGSC4), protective hard case (VA507), and factory ISO calibration certificate. For installers coordinating with Clean Energy Council requirements or state-based commissioning documentation, the optical/USB interface enables direct connection to Windows-based reporting software for automated compliance document generation.

Technical Specifications That Matter on Australian Job Sites

Voltage & Current Testing:

Open-circuit voltage measurement: 0-1000V DC with 0.1V resolution
Short-circuit current measurement: 0-30A DC with 0.01A resolution
Measurement category: CAT III 1000V AC, CAT III 1500V DC

Insulation Resistance Testing:

Test voltages: 250V, 500V, 1000V DC selectable
Measurement range: Up to 2000MΩ (exceeds AS/NZS 5033 minimum 1MΩ requirement)
DUAL function: Simultaneous positive/negative pole insulation measurement
OPT function: MLPE-compatible insulation testing
Polarization Index (P.I.) and Dielectric Absorption Ratio (D.A.R.) calculation

Continuity Testing:

Test current: >200mA DC (AS/NZS 5033 compliant)
Range: 0.00-199Ω with 0.01-1Ω resolution
Protective conductor verification per IEC/EN 61557-4

Data Management:

Internal memory: 999 test locations
Integrated WiFi for HTANALYSIS app connectivity
Optical/USB PC interface for report generation
Custom PV module database management

Physical Specifications:

Dimensions: 235 × 165 × 75mm
Weight: 1200g (including batteries)
Power: 6× AA alkaline batteries (included) or NiMH rechargeable
Display: Backlit LCD with on-screen help function
Protection: Hard carry case with shoulder strap included

Compliance Standards & Certifications

The PVCHECKS-ONE meets or exceeds all relevant Australian and international testing standards:

AS/NZS 5033:2021 – PV array installation and safety requirements
IEC/EN 62446-1 – PV system commissioning and documentation
IEC/EN 61557-1, -2, -4 – Electrical safety testing standards
IEC/EN 61187 – Insulation testing procedures
IEC/EN 61010-1, -031, -2-034 – Safety requirements for measurement equipment
IEC/EN 61326-1 – Electromagnetic compatibility requirements

Includes factory ISO calibration certificate traceable to international standards, meeting Clean Energy Council accreditation requirements for test equipment calibration.

Real Applications Across Australian Solar Installations

Residential Solar Commissioning: Solar installers completing Clean Energy Council-approved residential installations benefit from automated test sequences that satisfy AS/NZS 5033 commissioning requirements in minutes rather than hours. Single-touch operation reduces human error in test execution, while automatic documentation generation streamlines compliance reporting to state electrical authorities.

Commercial & Industrial Arrays: Electrical contractors managing 50kW to 500kW commercial rooftop installations appreciate the AUTOSTART function when testing multiple strings through combiner boxes. The ability to test strings sequentially without reconnecting test leads dramatically reduces commissioning time on large arrays, while the GFL fault locator speeds troubleshooting during acceptance testing.

Solar Farm Maintenance: Utility-scale operations teams rely on PVCHECKS-ONE for preventive maintenance inspections across thousands of modules. Insulation resistance trending using P.I. and D.A.R. ratios identifies deteriorating arrays before catastrophic failures occur, while performance verification under operating conditions confirms generation capacity matches pro forma projections.

Fault Diagnosis & Remediation: When solar arrays underperform or fail, the combination of comprehensive electrical safety testing, performance verification, and ground fault location pinpoints problems efficiently. The ability to test strings with optimizers installed (OPT function) eliminates hours of MLPE disconnection when troubleshooting optimizer-equipped installations.

Training & Education: TAFE colleges and Registered Training Organisations teaching solar installation courses value the PVCHECKS-ONE’s alignment with AS/NZS 5033 testing procedures and IEC 62446 compliance requirements. Students learn on the same professional equipment they’ll use in the field, while the instrument’s comprehensive testing capabilities support classroom demonstrations of various fault scenarios.

Optional Accessories for Complete Testing Solutions

SOLAR03 Environmental Monitoring Unit (Codmetel: 1739): Bluetooth-connected remote unit measures irradiance (0-1400W/m²), module temperature, and inclination angle. IP67-rated weatherproof housing suitable for outdoor use. Includes USB-C charging, 2× AA battery operation, and automatic calibration coefficient storage. Essential for performance verification testing to AS/NZS 5033 Appendix D.

HT305 Reference Cell (Codmetel: HA000305): Factory-calibrated monocrystalline reference cell for irradiance measurement (100-1400W/m²). IP65-rated with ±3.0% accuracy, >160° field-of-view angle, and integrated 2m connection cable. Includes ISO calibration certificate. Required for STC performance correlation.

PT305 Temperature Probe (Codmetel: HA305000): PT1000-type temperature sensor for accurate module temperature measurement required by performance testing calculations. Connects to SOLAR03 remote unit.

KIT BIFACIALONE (Codmetel: HA00BIFK): Complete bifacial module testing kit including 2× HT305 reference cells and SOLAR03 remote unit. Enables simultaneous front/rear irradiance measurement for bifacial performance verification. Includes ISO calibration certificates for both reference cells.

YABAT0003000 Rechargeable Battery Kit (Codmetel: HA030000): 6× AA NiMH rechargeable batteries (1.2V, 2000mAh minimum). Eliminates disposable battery costs on high-use installations.

YABAT0004001 External Battery Charger (Codmetel: HA040010): 6-position intelligent charger for AA/AAA NiMH batteries. 110-240VAC universal input, automatic charge termination.

KITPVPROEXT20 Extension Kit (Codmetel: HA0EXT20): 20m extension cable set with banana-to-banana connections. Enables testing distant strings without relocating instrument on large commercial arrays.

Why Australian Solar Professionals Choose PVCHECKS-ONE

Time Efficiency: Automated test sequences reduce commissioning time from hours to minutes. One installer reports completing compliance testing on a typical 6.6kW residential installation in under 15 minutes compared to 45+ minutes with separate instruments.

Compliance Confidence: Direct alignment with AS/NZS 5033:2021 and IEC 62446 testing procedures ensures every measurement meets regulatory requirements. Automated documentation generation satisfies Clean Energy Council submission standards without manual data transcription.

Diagnostic Power: The combination of comprehensive electrical safety testing and the GFL fault locator identifies problems that would remain hidden with basic multimeter testing. Multiple installers report finding insulation defects during commissioning that would have resulted in failed inspections or long-term performance degradation.

Equipment Consolidation: Replacing separate insulation testers, multimeters, and continuity meters with a single integrated platform reduces equipment investment, simplifies tool management, and eliminates the “which meter did I leave on the last job” problem.

Future-Proof Design: As Australian installations shift toward bifacial modules, MLPE optimizers, and higher voltage configurations approaching the residential 600V limit, PVCHECKS-ONE’s 1000V/30A capability, OPT function, and optional environmental monitoring provide headroom for evolving technologies.

“What equipment is needed for solar panel commissioning?” Position PVCHECKS-ONE as comprehensive answer including specific functions: insulation resistance testing, Voc/Isc measurement, continuity verification, polarity checking, and ground fault location.

“How do you test solar panel insulation resistance?” Emphasize DUAL function innovation, 1000V test voltage compliance with AS/NZS 5033, and elimination of external shorting switches.

“What is AS/NZS 5033 compliance for solar installations?” Directly address standard requirements with specific testing procedures PVCHECKS-ONE performs automatically.

“Can you test solar panels without disconnecting optimizers?” Feature OPT function as direct answer, explaining MLPE compatibility and time savings on SolarEdge/Tigo equipped installations.

“How do you find ground faults in solar arrays?” Highlight GFL function with specific module-by-module isolation capability.

Australian Support

We stock PVCHECKS-ONE units in Australia with same-day dispatch for orders placed before 3pm AEST. All instruments include factory ISO calibration certificates and 12-month manufacturer’s warranty covering materials and workmanship defects.

For ongoing compliance with Clean Energy Council equipment requirements and state electrical authority regulations

Weight	1.5 kg

Specifications

Technical Specifications Table

Specification	Detail	Practical Significance
Measurement Category	CAT III 1000V AC, CAT III 1500V DC	Safely test commercial solar installations with maximum array voltages up to 1000V, exceeding typical residential 600V configurations
Open-Circuit Voltage (Voc)	0-1000V DC, 0.1V resolution	Verify individual module and complete string voltages against manufacturer specifications for commissioning acceptance
Short-Circuit Current (Isc)	0-30A DC, 0.01A resolution	Confirm module current output under operating conditions, essential for detecting shading, degradation, or wiring problems
Insulation Resistance Test Voltages	250V, 500V, 1000V DC selectable	Meets AS/NZS 5033 minimum 1MΩ @ 1000V requirement; lower voltages useful for initial troubleshooting without stressing damaged insulation
Insulation Resistance Range	0-2000MΩ	Exceeds regulatory minimums by 2000×, enabling detection of subtle insulation degradation before catastrophic failure
DUAL Function	Electronic simultaneous P/N measurement	Eliminates external shorting switches—saves 5+ minutes per string test and reduces connection errors on large installations
Continuity Test Current	>200mA DC	AS/NZS 5033 compliant for protective conductor verification; higher current than typical multimeters ensures accurate bonding resistance measurement
Continuity Measurement Range	0.00-199Ω (0.01-1Ω resolution)	Detects poor bonding connections that compromise electrical safety; 0.01Ω resolution identifies issues missed by basic meters
Polarity Detection	Automatic verification	Prevents DC reverse-connection damage to inverters—critical when commissioning strings before final inverter connection
GFL Ground Fault Locator	Module-by-module fault isolation	Pinpoints exactly between which modules insulation fault exists, eliminating trial-and-error troubleshooting on 20+ module strings
OPT Function	MLPE-compatible insulation testing	Test strings with SolarEdge, Tigo optimizers installed—saves hours disconnecting/reconnecting MLPE devices on commercial installations
Polarization Index (P.I.)	Automated calculation	Trending P.I. ratios during preventive maintenance predicts insulation deterioration before failures occur—essential for solar farm operations
Dielectric Absorption Ratio (D.A.R.)	Automated calculation	Supplementary insulation quality indicator useful for warranty claims and degradation analysis
AUTOSTART Mode	Sequential combiner box testing	Automatically tests all strings in sequence—transforms 30-minute combiner commissioning into 10-minute process
Internal Memory	999 test location storage	Store weeks of commissioning data without PC connection; retrieve historical measurements for warranty or compliance disputes
WiFi Connectivity	HTANALYSIS app integration	Wireless data transfer to iOS/Android devices for on-site report generation and cloud backup
Optical/USB Interface	PC connectivity	Generate formal compliance reports in office environment; integrate with existing documentation workflows
PV Module Database	Custom database management	Store manufacturer specifications for all modules you install—automate STC comparison calculations during commissioning
Environmental Monitoring	SOLAR03 Bluetooth connection	Measure irradiance, temperature, inclination wirelessly—required for accurate AS/NZS 5033 Appendix D performance verification
Irradiance Measurement	0-1400W/m² (with SOLAR03 + HT305)	Covers typical Australian conditions from early morning/late afternoon (200W/m²) through midday peaks (1200+ W/m²)
Display	Backlit LCD	Read measurements in direct Australian sunlight without shade or squinting—critical for rooftop work
On-Screen Help	Contextual guidance	Access testing procedures without carrying manuals to rooftop—reduces training time for new technicians
Power Supply	6× AA alkaline or NiMH rechargeable	Readily available batteries eliminate downtime; optional rechargeable kit reduces operating costs on high-use applications
Dimensions	235 × 165 × 75mm	Compact enough for tool belt carry but large enough for clear display and robust test terminals
Weight	1200g (batteries included)	Light enough for all-day rooftop work without fatigue; robust construction withstands job site handling
Operating Temperature	-10°C to +50°C	Handles Australian climate extremes from winter morning roof commissioning to summer afternoon work
Storage Temperature	-20°C to +60°C	Safely store in work vehicles through seasonal temperature variations without calibration drift
Hard Carry Case	VA507 included	Protects instrument during transport and harsh job site conditions; integrated shoulder strap for hands-free carrying
Standard Accessories	MC4 adapters, test leads, calibration certificate	Ready to test right out of the box—no additional purchases required for basic commissioning work
Compliance Standards	AS/NZS 5033, IEC 62446, IEC 61557, IEC 61010	Meets all Australian and international standards for solar commissioning test equipment—satisfies Clean Energy Council requirements

Product Applications

Residential Solar Installation Commissioning

Complete AS/NZS 5033:2021 electrical safety verification and performance testing for Clean Energy Council-approved residential installations. Automated test sequences reduce commissioning time from 45+ minutes to under 15 minutes on typical 6.6kW systems, while integrated documentation generation satisfies state electrical authority submission requirements.

Commercial & Industrial Rooftop Array Testing

Streamline commissioning workflows on 50kW-500kW commercial installations with AUTOSTART sequential string testing through combiner boxes. The ability to test multiple strings without reconnecting test leads reduces labour costs on large arrays, while comprehensive electrical safety verification ensures long-term installation reliability.

Solar Farm Preventive Maintenance

Conduct scheduled insulation resistance and performance verification across utility-scale installations with thousands of modules. Polarization Index (P.I.) and Dielectric Absorption Ratio (D.A.R.) trending identifies deteriorating arrays before catastrophic failures, while performance testing confirms generation capacity against contractual guarantees.

String Performance Troubleshooting

Diagnose underperforming or failed strings efficiently using combined Voc/Isc measurements, insulation resistance testing, and ground fault location. The GFL function pinpoints exactly between which modules faults exist, eliminating hours of trial-and-error troubleshooting on long strings.

Bifacial Module Performance Verification

Test emerging bifacial module installations using dual irradiance measurement (KIT BIFACIALONE) to verify manufacturer performance claims accounting for ground reflection and backside gain. Essential for commercial installations where bifacial modules represent significant cost premiums over monofacial alternatives.

MLPE-Equipped Installation Testing

Commission and troubleshoot installations incorporating SolarEdge optimizers, Tigo devices, or other module-level power electronics using the OPT function. Eliminates hours of MLPE disconnection/reconnection time while obtaining valid insulation resistance measurements required by AS/NZS 5033.

Grid-Connected System Acceptance Testing

Verify complete PV installations meet electrical safety and performance requirements before final connection approval. Comprehensive testing including continuity, polarity, insulation, Voc, and Isc provides documented evidence satisfying electrical authority acceptance criteria.

Off-Grid Solar System Commissioning

Test standalone solar installations on remote properties, telecommunications sites, or agricultural operations with the same rigour as grid-connected systems. Battery bank protection relies on proper PV array isolation, making insulation resistance verification critical for long-term system reliability.

Solar Training & Education Programs

Teach AS/NZS 5033 compliant testing procedures using professional equipment aligned with industry practice. TAFE colleges and Registered Training Organisations benefit from comprehensive functionality covering all commissioning requirements in a single instrument suitable for classroom demonstrations and practical assessments.

Warranty Claim Documentation

Generate defensible performance data when modules or installations underperform manufacturer specifications. Calibrated measurements of Voc, Isc, and insulation resistance under documented environmental conditions provide evidence supporting warranty claims or contractor liability disputes.

FAQ

Frequently Asked Questions

Does the PVCHECKS-ONE replace my insulation tester and multimeter?

Yes, PVCHECKS-ONE consolidates the functions of separate insulation resistance testers, digital multimeters, and continuity meters into a single instrument designed specifically for solar commissioning. You’ll still want a basic multimeter for general electrical troubleshooting, but for PV-specific testing as required by AS/NZS 5033, the PVCHECKS-ONE handles all electrical safety and performance verification measurements.

Can I test strings with SolarEdge optimizers installed without disconnecting them?

Absolutely. The OPT function specifically enables insulation resistance testing on strings equipped with module-level power electronics like SolarEdge optimizers, Tigo devices, or rapid shutdown equipment. Traditional insulation testing requires disconnecting MLPE devices, which adds significant time on large installations. The PVCHECKS-ONE’s OPT mode applies modified test protocols that obtain valid measurements with optimizers remaining connected to modules.

Is the DUAL function really better than using an external shorting switch?

The DUAL function eliminates both the external shorting hardware and the additional connection steps required by traditional PV insulation testing. Beyond the obvious time savings (typically 5+ minutes per string test on commercial installations), electronic shorting reduces opportunities for connection errors and provides three simultaneous measurements—total insulation, positive pole insulation, and negative pole insulation—identifying exactly where degradation exists. This diagnostic capability proves invaluable when troubleshooting arrays with intermittent ground faults.

What optional accessories do I actually need for residential commissioning work?

For basic AS/NZS 5033 compliance testing on residential installations, the PVCHECKS-ONE includes everything required—MC4 adapters, test leads, and factory calibration. However, if you need to verify module performance meets manufacturer specifications (AS/NZS 5033 Appendix D), you’ll need the SOLAR03 environmental monitoring unit (for irradiance and temperature measurement) paired with an HT305 reference cell. Many installers purchase these accessories for warranty claim documentation and troubleshooting underperforming systems, even though they’re optional for basic electrical safety commissioning.

How does this compare to the PVCHECKS-PRO model?

The PVCHECKS-PRO handles higher voltages (1500V vs 1000V) and currents (40A vs 30A), making it suitable for large commercial and utility-scale installations approaching the 1500V DC limit. For residential and most commercial work up to 1000V—which covers the vast majority of Australian installations under AS/NZS 4777.1:2017’s 600V residential limit—the PVCHECKS-ONE provides identical functionality at a lower investment. If you’re primarily working on rooftop installations under 100kW, the PVCHECKS-ONE represents the more practical choice.

Does the instrument meet Clean Energy Council accreditation requirements?

Yes, PVCHECKS-ONE complies with all testing standards referenced in Clean Energy Council Grid-Connected Solar PV Installation Guidelines, including AS/NZS 5033, IEC 62446, and IEC 61557. Every unit includes a factory ISO calibration certificate traceable to international standards. For ongoing compliance, we recommend annual recalibration to maintain measurement accuracy and satisfy state electrical authority equipment requirements.

Can I generate compliance reports directly from the instrument?

The PVCHECKS-ONE stores measurement data in internal memory (999 test locations) and connects to Windows PCs via optical/USB interface for formal report generation using HT Instruments’ TopView software. For iOS/Android mobile reporting, the integrated WiFi connects to the HTANALYSIS app, enabling on-site compliance document generation and cloud backup. Both solutions automate data transfer, eliminating manual transcription errors common with separate instruments.

How long does battery power last during typical use?

With alkaline AA batteries, expect 8-12 hours of active commissioning work including multiple AUTOSTART sequences and insulation resistance tests. For high-volume installers completing multiple residential systems daily, the optional rechargeable battery kit (YABAT0003000) eliminates disposable battery costs while providing comparable runtime. The instrument includes auto-shutoff to prevent battery drain between test sessions.

Will this work with bifacial solar modules?

Yes, the PVCHECKS-ONE tests bifacial modules identically to monofacial modules for electrical safety verification. For performance testing that accounts for bifacial gain, you’ll need the KIT BIFACIALONE accessory kit (2× HT305 reference cells + SOLAR03) to simultaneously measure front and rear irradiance. This configuration enables accurate STC performance correlation accounting for ground reflection and backside power generation.

Can I locate ground faults without removing all the modules from a string?

The GFL (Ground Fault Locator) function identifies between which modules in a string an insulation fault exists without physical disassembly. Connect to the string, initiate GFL testing, and the instrument systematically isolates the fault location, narrowing the problem to a specific module pair. This capability transforms what would be hours of trial-and-error troubleshooting into a 10-15 minute diagnostic procedure, particularly valuable on 20+ module strings where visual inspection reveals no obvious damage.

Is annual recalibration really necessary?

Australian state electrical authorities and Clean Energy Council accreditation requirements mandate that test equipment maintains calibration traceable to national standards. While the PVCHECKS-ONE’s measurement accuracy remains stable across typical job site conditions, annual recalibration provides documented verification that your instrument meets regulatory standards. Most professional installers schedule recalibration during slow winter months to avoid downtime during peak installation season. We offer comprehensive recalibration services including functional verification, calibration certificate update, and NATA traceability documentation.

Does it test insulation at the 1000V required by AS/NZS 5033?

Absolutely. The PVCHECKS-ONE provides selectable insulation test voltages of 250V, 500V, and 1000V DC, with the 1000V setting meeting AS/NZS 5033 minimum requirements for arrays operating up to 1000V. The lower voltage settings prove useful for initial troubleshooting on damaged installations without stressing compromised insulation, while the 1000V setting provides the formal compliance testing required for commissioning documentation.
