Is Your Solar Array Actually Delivering What It Should?

You’ve just commissioned a new rooftop installation, or you’re six months into a service contract and a customer is reporting lower-than-expected yield.

Without the right test gear, you’re guessing. Shading losses, panel mismatch, cell degradation, or a faulty bypass diode can silently rob kilowatt-hours — and tracking down the culprit with a basic multimeter takes time you don’t have on a busy site.

For Australian solar installers and maintenance teams working across residential rooftops, commercial arrays, and utility-scale projects, having a purpose-built panel tester isn’t a luxury — it’s the difference between a quick sign-off and a costly callback.

One Tool. Every Key Panel Parameter.

The FLIR PV48 is built specifically for on-panel performance testing. Rather than cycling through a multimeter’s measurement modes and manually calculating Pmax, this dedicated I-V curve tracer captures the complete current-voltage characteristic of a solar panel in a single test sweep.

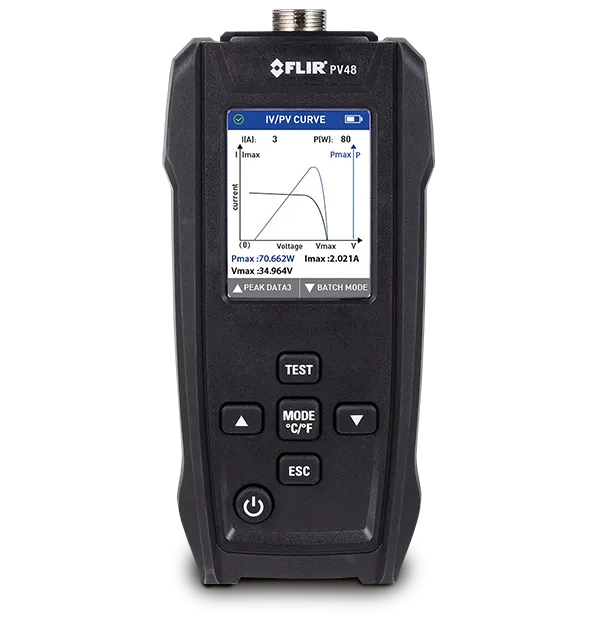

The result is a real-time graphical I-V curve plotted on the large, high-contrast LCD — immediately showing whether the panel is producing power along its expected characteristic curve or whether something is pulling performance off-spec.

In a single test, the PV48 simultaneously captures:

• Pmax — maximum power output in watts
• Voc — open-circuit voltage
• Isc — short-circuit current
• Vmax — voltage at maximum power point
• Imax — current at maximum power point
• Ambient temperature — for contextual STC correction

The graphical I-V curve overlay is the key differentiator here. Rather than just reading a number, you can visually identify whether the curve shape indicates shading, bypass diode issues, internal resistance problems, or general degradation — all without needing to pull the panel off the roof.

Built for the Australian Worksite

The PV48 handles panels up to 800W — which covers the broad majority of residential and commercial modules in Australian installations today, including common 400–700W mono-PERC and TOPCon panels.

The large, high-contrast LCD remains readable even under direct Queensland or WA sun — a practical necessity that many importers overlook. The instrument is powered by a built-in lithium-ion battery, so there are no AA batteries to track down mid-job.

The included CAT III-300V MC4 PV plugs and CAT III-300V double-moulded alligator clips mean you can connect directly to panel terminals without sourcing aftermarket adapters. The compact 206g body — roughly the size of a large smartphone — tucks easily into a tool bag and doesn’t add fatigue on multi-array inspection days.

Certified to IEC 61010-1 safety standards with CE and RCM marks, the PV48 meets the compliance expectations you’d expect from a professional-grade instrument.

Who Uses the FLIR PV48?

Solar installers and CEC-accredited designers use the PV48 during pre-energisation commissioning to confirm each panel meets its rated output before sign-off under AS/NZS 5033. A quick sweep of each string confirms the panels are healthy before the inverter goes live.

Solar maintenance contractors carry the PV48 as their first diagnostic tool when a customer reports reduced generation. An I-V curve sweep quickly distinguishes between a panel fault, a string wiring issue, or an inverter-side problem — reducing callout time significantly.

O&M teams on commercial and industrial solar arrays use the PV48 in scheduled maintenance rounds to track panel performance over time, identifying early-stage degradation or bypass diode failures before they cause larger system losses.

Solar panel importers and quality assurance teams use it in goods-in inspection to verify panel performance against manufacturer datasheets, catching underperforming batches before they’re installed.

Testing Modes

The PV48 offers multiple testing modes to suit different workflows:

• I-V / PV Curve mode — captures and displays the full I-V and P-V characteristic curve with Pmax, Vmax, and Imax
• Batch mode — runs a quick 10-reading test session for rapid screening of multiple panels
• Peak Data mode — takes 30 readings across three data pages for thorough per-panel analysis
• Manual mode — high-accuracy measurements for low-power panels (≤100W), ideal for small or damaged modules requiring careful assessment

---

Technical Specifications

---

Conversational query: “What does an I-V curve tracer tell you about a solar panel?”

An I-V curve tracer maps the current-voltage relationship of a solar panel across its full operating range in a single sweep.

The shape of the resulting curve reveals how well the panel is performing — a healthy panel produces a characteristic S-shaped curve reaching its maximum power point cleanly. Flat spots, kinks, or a reduced fill factor can indicate shading, bypass diode failure, internal cell damage, or series resistance problems.

The FLIR PV48 displays this curve graphically on screen, making it possible to visually diagnose panel faults on-site without sending data to a laptop.

Conversational query: “How do I check if a solar panel is performing to specification?”

To verify a solar panel against its datasheet spec, you need to measure open-circuit voltage (Voc), short-circuit current (Isc), and maximum power (Pmax) under known irradiance and temperature conditions.

A dedicated I-V curve tracer like the FLIR PV48 captures all three parameters — plus the full current-voltage curve — in one test. Pair it with the FLIR PV78 irradiance meter to record simultaneous irradiance and module temperature, giving you everything needed to calculate STC-corrected performance and confirm compliance with the panel’s rated specifications.
