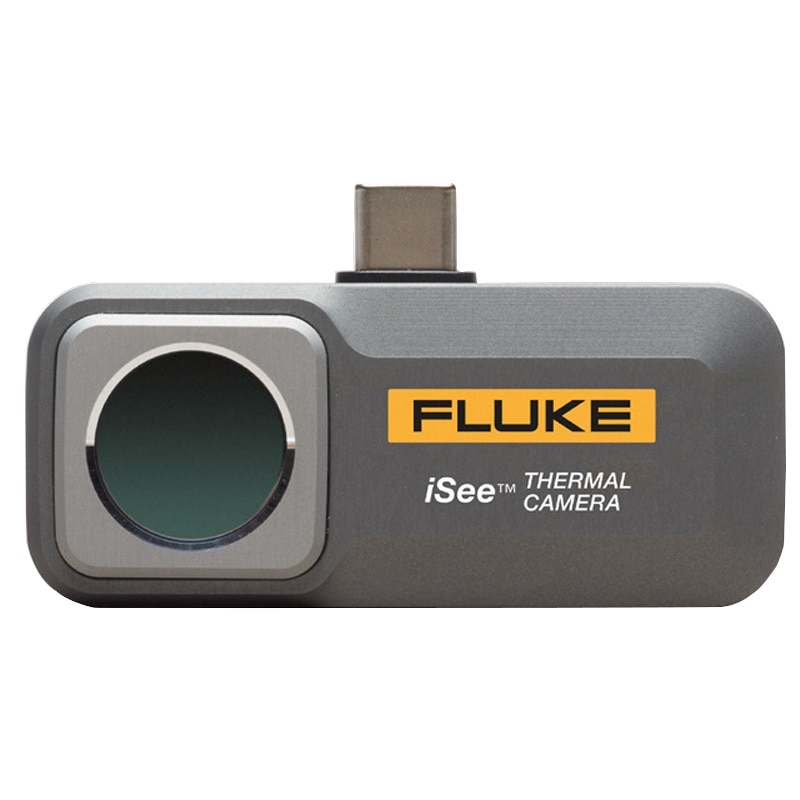

Fluke iSee™ Mobile Thermal Camera – TC01A/TC01B/TC01C

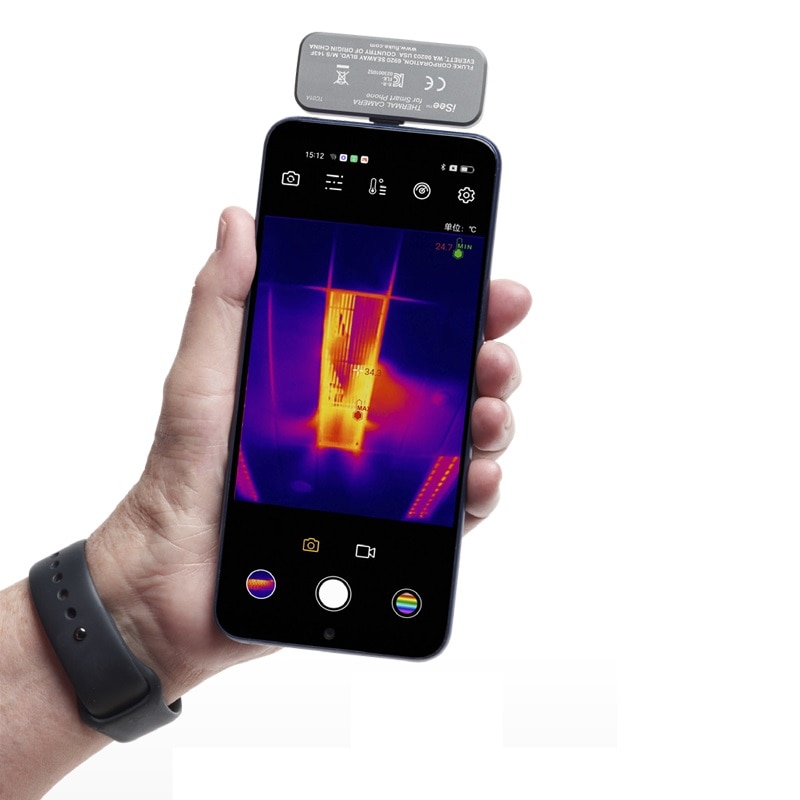

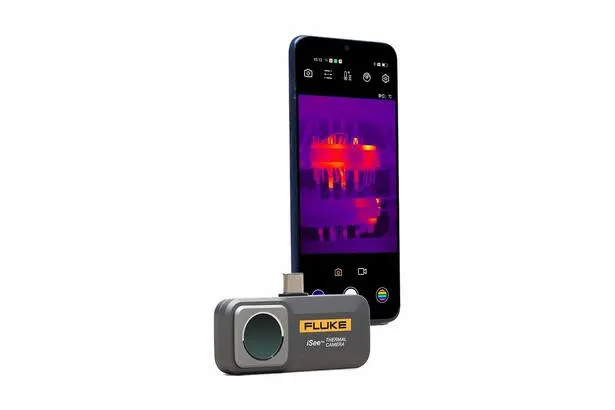

With the Fluke iSee™ Mobile Thermal Camera, temperature can be measured and thermal imaging detection can be carried out anytime and anywhere by conveniently inserting it into the Type C or Lightning interface of a smartphone.

It can be widely used in electrical and mechanical inspections, inspection service, HVAC inspection, product R&D and quality control, greatly improving the inspection efficiency

Key features

256 x 192 pixels, detailed image quality
Up to 550 °C, suitable to use in many applications
±2% or ±2 °C accuracy, reliable and stable
25 Hz frame rate for smooth video recording
Live preview of more than 10 standard or custom color palettes
Never miss any details with real-time high and low temperature capture
Automatic capturing images and shooting videos when the temperature exceeds the limit
Adjustable emissivity to apply with different materials
Comprehensive temperature analysis for 5 spots, 5 lines and 5 areas, supported with professional thermal imaging app
Real-time temperature alarm for timely response of abnormal condition
Automatic time-lapse capture mode for unattended operation
Automatically generate infrared inspection reports, easy for reporting, archiving and sharing
Share and manage images and videos in real-time, for fast and efficient communication
Up to 1 meter drop test, IP56 (TC01B/TC01C)/IP54 (TC01A) ingress protection, adhering to the Fluke durability and quality

To download the Fluke iSee™ APP:

^*The functions are slightly different on the Android and iOS version. Please refer to the actual APP.

Fluke TC01A-TC01B-TC01C Datasheet

Click here to Make an Enquiry / Calibration

If you would like more information regarding this product, simply email us here.

Categories: Fluke, POPULAR PRODUCTS, Test Equipment For Electricians, Thermal Imagers Tags: Fluke, Infrared imager, Thermal Imagers Brand: Fluke

Product overview: Fluke iSee™ Mobile Thermal Camera – TC01A/TC01B/TC01C

Detailed image quality comparable to professional thermal cameras

256 x 192 pixels, detailed image quality
Up to 550 °C, suitable to use in many applications
50 mk (0.05 °C) thermal sensitivity for fine differences
± 2% or ± 2 °C accuracy to ensure reliable results
25 Hz frame rate for smooth video recording
Customize image view with more than 10 standard or custom color palettes

Powerful full temperature range analysis

Never miss any details with real-time high and low temperature capture
Automatically capture images and shoot videos when the temperature exceeds the limit, and capture live scenes automatically
Adjustable emissivity to apply with different materials
Comprehensive temperature analysis for 5 spots, 5 lines and 5 areas, supported with professional thermal imaging app
Real-time temperature alarm for timely response of abnormal condition
Automatic time-lapse capture mode for unattended operation
Infrared and visible image comparison for locating, comparing and archiving

Real-time image sharing for fast and easy communication

Share and manage images and videos in real-time, for fast and efficient communication
Easy to add image annotation for smooth communication
Automatically generate infrared inspection reports, easy for reporting, archiving and sharing

Small and portable, takes only a second to get started

Compact design as light as 22 g
The iSee™ is made of high quality specially treated aluminum material with laser etched surface
Up to 1 meter drop test, IP56 (TC01B/TC01C)/IP54 (TC01A) ingress protection, adhering to the Fluke durability and quality
Optimised Fluke iSee™ application interfaces and menus, to enhance user experience with easy to access functions

Specification

Specifications: Fluke iSee™ Mobile Thermal Camera – TC01A/TC01B/TC01C

	TC01A	TC01B	TC01C
Performance Specifications
IR resolution	256 x 192
Pixel size	12 μm
Temperature range	-10 ℃ to 550 ℃	-20 ℃ to 550 ℃
Temperature accuracy	± 2 % of rdg or ± 2 °C, whichever is greater (@ 23 °C ± 5 °C ambient temperature)
Temperature measurement distance	0.25 m to 5 m (* -20 ℃ to 10 ℃, only for 0.25 m to 3 m)
Frame rate	25 Hz
Warm-up time	1 minute
Focal length	Fixed focal length: 3.2 mm
Shutter mode	Internal auto shutter
Thermal sensitivity (NETD)	50 mK
Spectral range	8 to 14 μm
Field of view (H x V)	56° x 42°
Spatial resolution	3.81 mrad
General Specifications

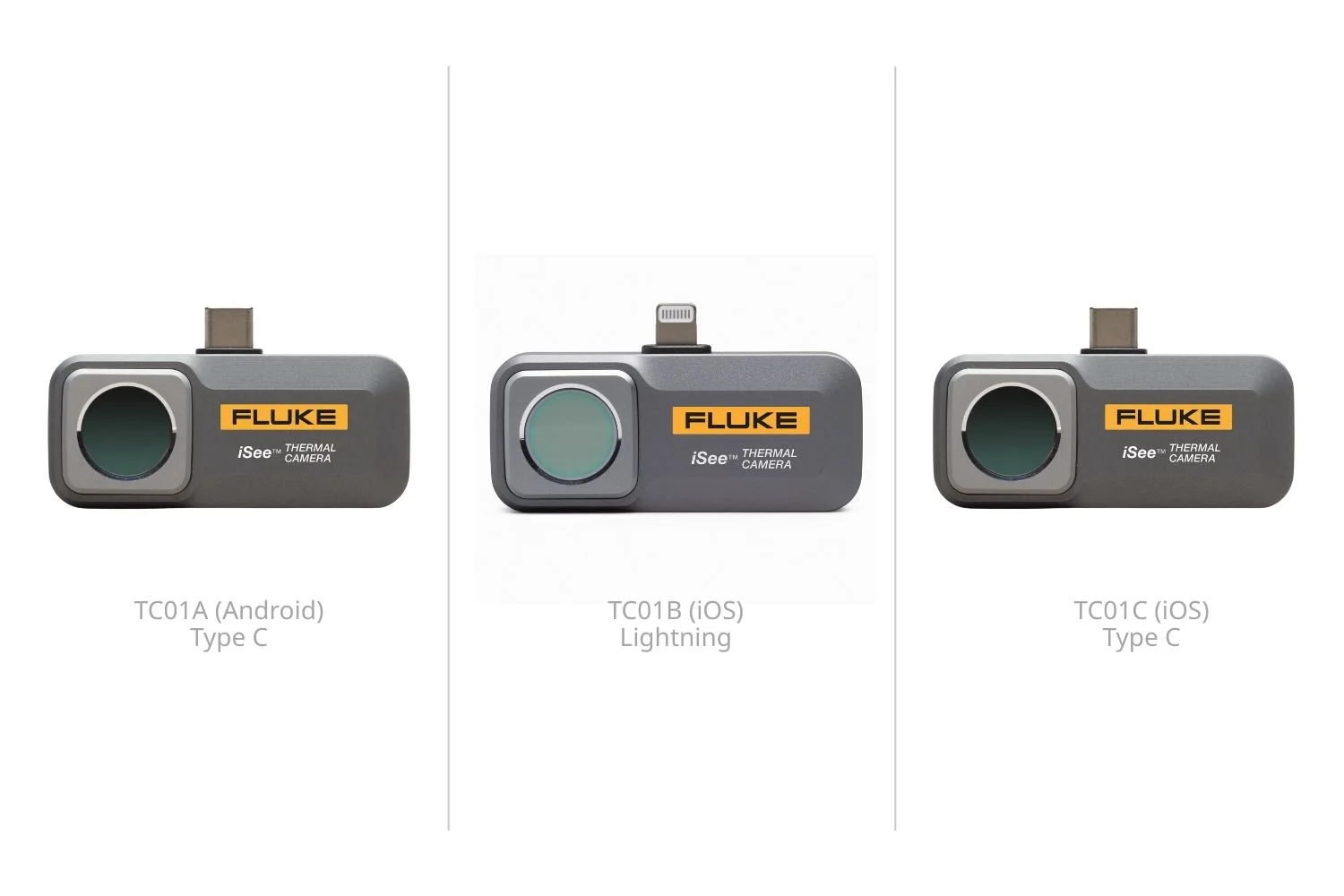

USB interface	Type C	Lightning	Type C
Compatible system	Android and HarmonyOS	iOS
Operating temperature	0 ℃ to 40 ℃
Storage temperature	-30 ℃ to 60 ℃
Operating humidity	10% to 90% RH, non-condensing
Power consumption	350 mW (Typical)	200 mW (Typical)
Drop test	1 m
Ingress protection	IEC 60529: IP54 (with the protective cover for Type C)	IEC 60529: IP56	IEC 60529: IP56 (with the protective cover for Type C)
Operating altitude	2000 m
Storage altitude	12 000 m
Dimensions (L x W x H)	60 x 33.5 x 11.2 mm
Weight	22 g
EMC Environment	International: IEC 61326-1: Electromagnetic environment for portable equipments CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.




	Korea (KCC) Class A Equipment (Industrial Broadcasting and Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
	United States (FCC) 47 CFR 15 Subpart B. This product is considered an exempt device per clause 15.103.

Warranty	2 years
