Key Features of the Fluke CV300 75 mm Infrared Window
Quick and Easy Installation – Up to 5 Minutes
The Fluke CV300 IR window is designed for fast, hassle-free installation, saving you valuable time on the job.
- Requires only one technician
- Single hole installation using a standard Greenlee® punch
- No need to remove the panel door
- Instantly grounds to metal enclosures via the patent-pending AutoGround™ process
- Maintains panel arc test ratings up to 63kA when properly installed
Improve Workplace Safety and Efficiency
The Fluke ClirVu® CV300 infrared window helps electricians, engineers, and safety inspectors work more efficiently while reducing the risk of arc-flash and electrocution.
- Fewer work permits required, significantly streamlining NFPA 70E compliance
- Full PPE often not required, making inspections faster and more comfortable
- Reduces arc-flash risk, improving personnel safety and lowering preventive maintenance costs
- Torture Tested™ to the highest arc blast ratings, including IEEE C37.20.7: 63kA, UL 50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, NEMA 4/12, CSA C22.2 NO. 14-13:2012, and CE
- Available with quick-turn or security keyed access for added convenience

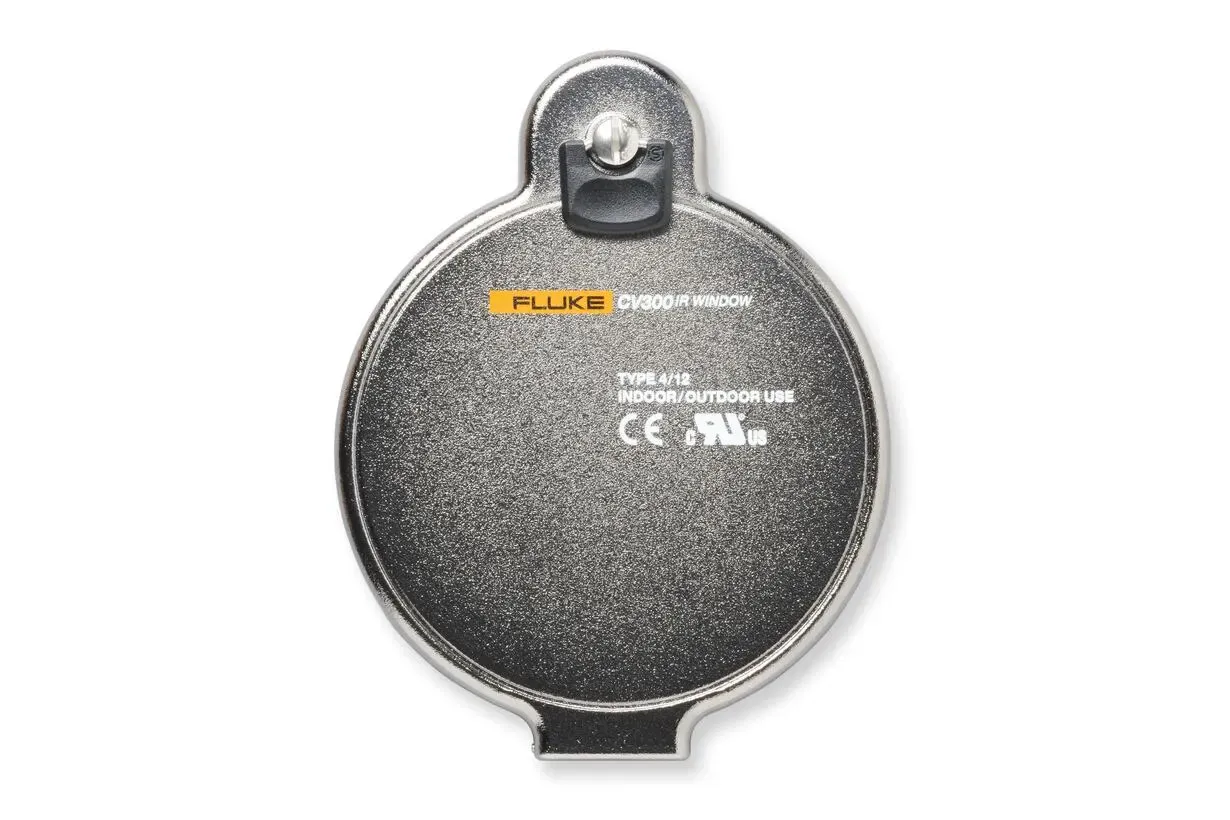

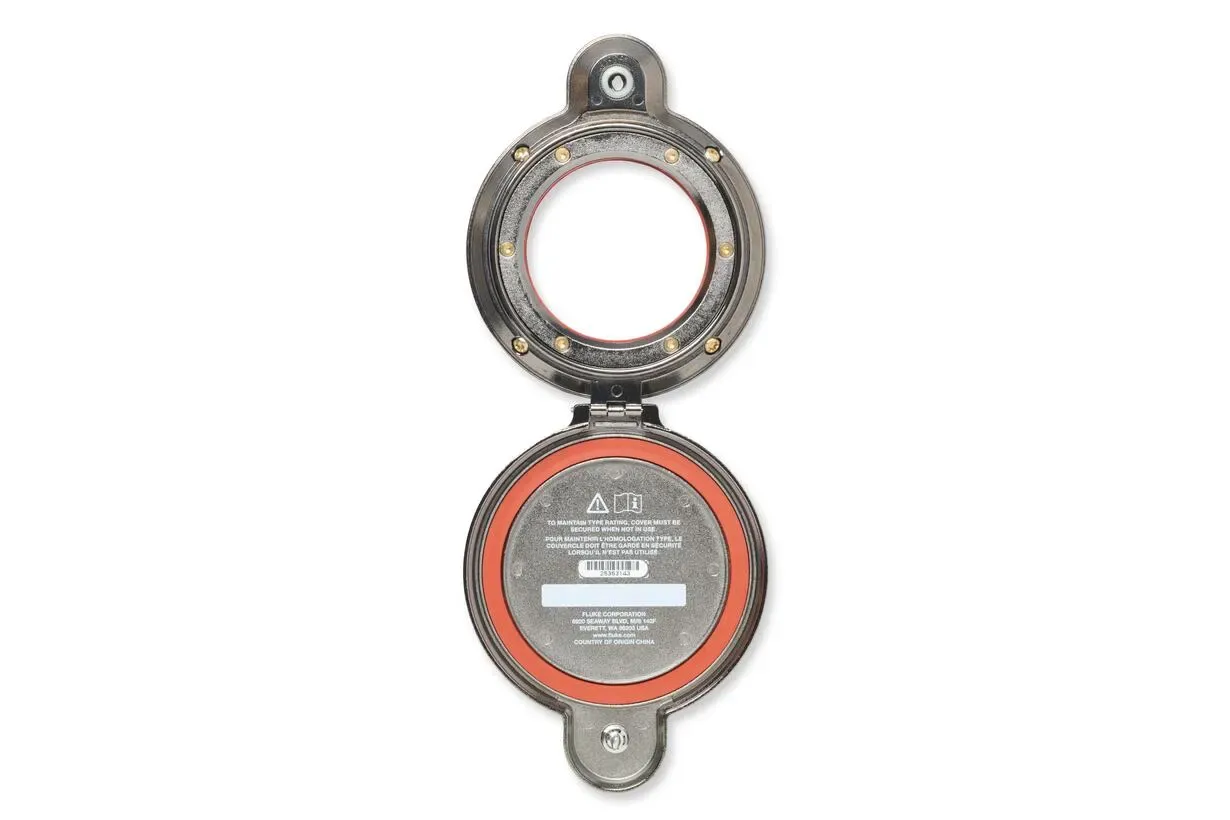

Product Overview: Fluke CV300 75 mm (3 in) Infrared Window
When it comes to electrical safety equipment, protecting your workforce is the top priority. The Fluke CV300 infrared window is built to safeguard the electricians, engineers, and inspectors who put themselves at risk every day.
Every Fluke IR window comes with an identification plate for on-site numbering, making it easy to confirm locations quickly and carry out faster repairs.
Looking for a security key access option? Check out the CV301 IR Window.
The CV Series of infrared windows is also available in 50 mm (2 in) and 95 mm (4 in) sizes to suit a range of applications.
Models: Fluke CV300 75 mm (3 in) Infrared Window
Includes:
3 in (75 mm) IR Window
Hand turn door latch
Warranty statement
Fluke IR Windows are complete, assembled and ready for installation
