Quick Installation – Up and Running in 5 Minutes or Less
The CV Series is designed for fast, hassle-free installation, getting you up and running in 5 minutes or less.
- Single technician installation
- One hole required, using a standard Greenlee® punch
- No need to remove the panel door
- Instantly grounds to metal enclosures via the patent-pending AutoGround™ process
- Maintains panel arc test ratings up to 63kA when properly installed
Boost Efficiency with the Fluke CV200 50 mm (2 in) Infrared Window
- Significantly reduces NFPA 70E processes by minimising work permit requirements
- Allows thermal inspections to be carried out with the switchboard door closed, greatly reducing arc-flash and electrocution risks. In many applications, this may reduce PPE requirements compared to opening energised equipment, enabling faster and more comfortable inspections. PPE selection must always align with the site’s risk assessment, AS/NZS 4836 requirements, and the customer’s electrical safety procedures
- Torture Tested™ to the highest arc blast ratings: IEEE C37.20.7: 63 kA Arc tested at KEMA, UL 50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, NEMA 4/12, CSA C22.2 NO. 14-13:2012, and CE certified
- Available with quick-turn or security keyed access for added convenience

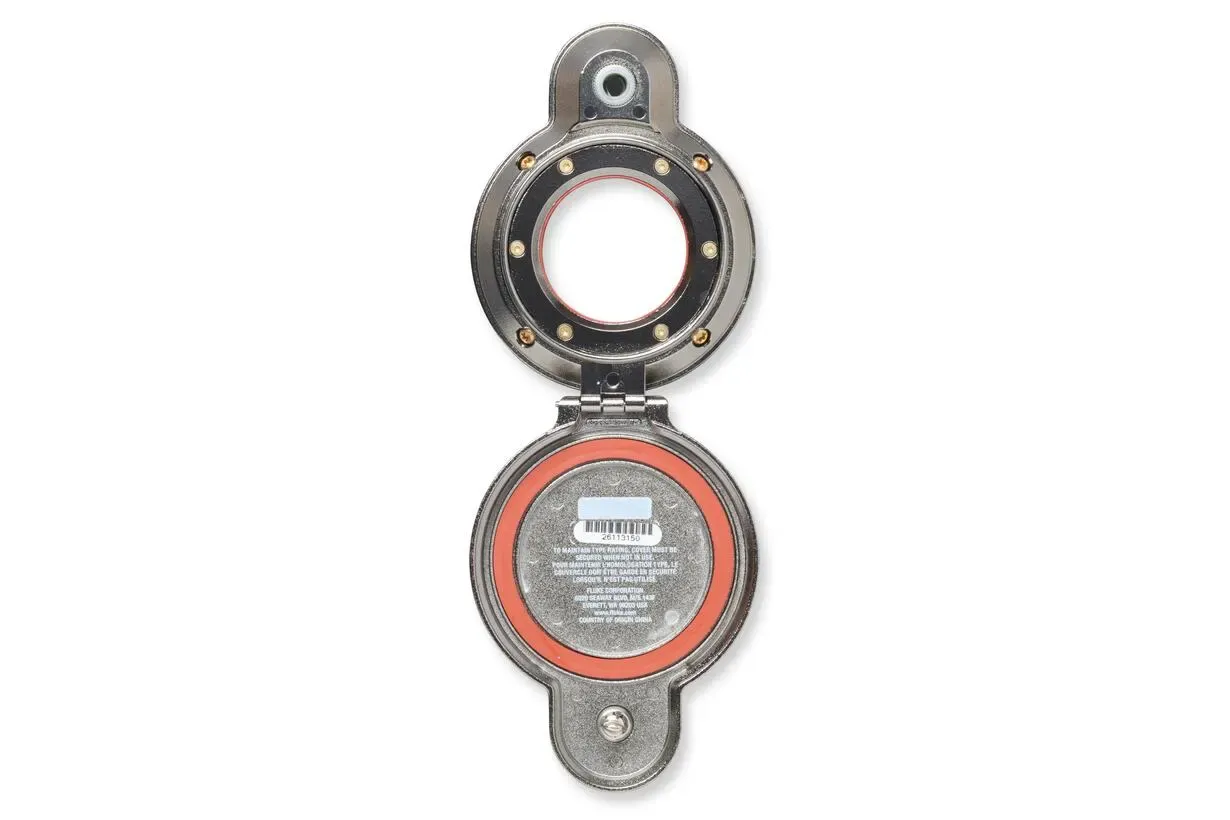

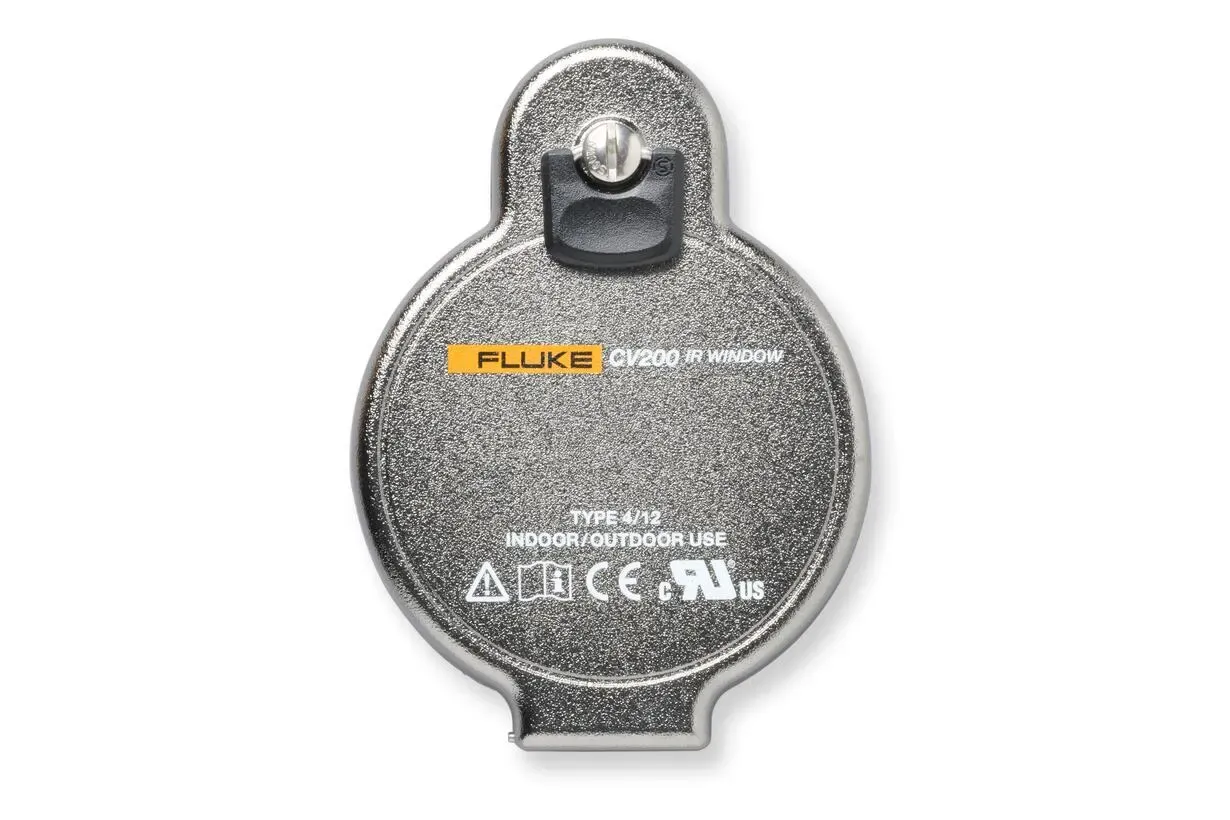

Product Overview: Fluke CV200 50 mm (2 in) Infrared Window
A company’s most valuable asset isn’t the equipment behind the panel door — it’s the electricians, engineers, and inspectors who put their safety on the line every day. The Fluke CV200 is built with their protection as the top priority.
Every Fluke infrared window comes with an identification plate for unique on-site numbering, enabling rapid location confirmation and faster repairs.
For a security key access option, see the CV201 IR Window.
The CV Series is also available in 75 mm (3 in) and 95 mm (4 in) sizes to suit a range of applications.
Models: Fluke CV200 50 mm (2 in) Infrared Window
Includes:
2 in (50 mm) IR Window
Hand turn door latch
Warranty statement
Fluke IR Windows are complete, assembled and ready for installation
