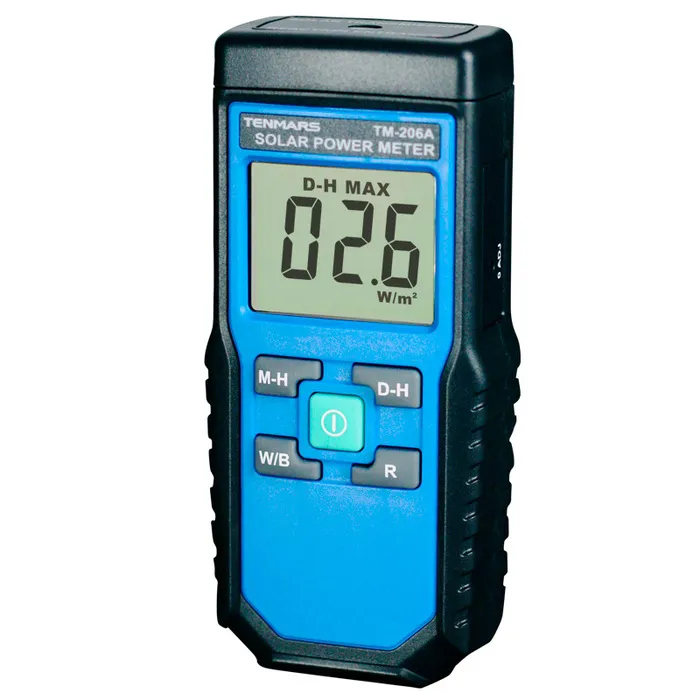

Solar irradiance meter | Tenmars TM-206

Tenmars_logo_05

The Tenmars TM-206 Solar irradiance meter is an instrument used to measure solar power that is easy to use – just point the TM-206 at the sun and take your measurement.

Features/Benefits

3-1/2 digit LCD display. Maximum reading 2000.
End-mount sensor.
Select either Power or Transmission.
Select either W/m2 or BTU/FT2xh)
Data Hold/Min/Max functions.

Applications

Solar Radiation measurements.
Solar Power research.
Physics and Optical Laboratories.
Identify high performance windows

Authorised Australian Distributor

Click here to Make an Enquiry / Demo / Calibration

If you would like more information regarding this product, simply email us here.

SKU: TENMARS TM-206 Categories: Light/Lux Meters, Tenmars, Test Equipment For Solar PV Tags: Solar Measurement, Tenmars

The Tenmars TM-206 Solar irradiance meter is an instrument used to measure solar power that is easy to use – just point the TM-206 Solar irradiance meter at the sun and take your measurement.

The TM-206 Solar irradiance meter is supplied complete in a compact carry pouch with calibration certificate, battery and user manual.

Tenmars TM-206 Features:

Point and shoot solar irradiance measurements
Easy to read LCD digital display
User selectable measurement units
Auto Ranging
Take irradiance measurements easily for solar panel placement
Measures up to 2,000W/m2 (634BTU/(ft2*h)
Maximum and minumum readings
Data hold function
Low battery indication
Calibration certificate
Low cost and high precision (excellent performance to cost ratio)

The units of measure are Watts per square meter or BTU, the typical test and measuring applications are:

– Meteorology applications
– Agriculture applications
– Physics and optical laboratories
– Solar radiation measurement.
– Solar transmission measurement
– Solar power research
– Identify high performance windows
– Helpful to set up Solar PV Panels at optimum angles of incidence
– Light Intensity Measurement for the car windows

Tenmars TM-206 Specifications
Display	LCD, 3-1/2 digit, 2000 readings
Ranges	2000 W/m2, 634 BTU/ft2xh
Accuracy	Typically within ±10W/m2 [±3BTU/(ft2xh)] or ±5% whichever is greater in sunlight; Additional temperature error included ±0.38 W/m2/°C [±0.12BTU/(ft2xh)/°C] from 25°C
Angular Accuracy	Cosine corrected <5% for angles <60°
Drift	<±2% per year
Input Overload	“OL” displayed
Sampling Rate	0.25/sec
Operating Temperature	0°C to 50°C
Relative Humidity	below 80%
Power Supply	1 x 9 Volt Alkaline battery
Dimensions	130mm (L) x 55mm (W) x 39mm (D)
Weight	150g approx.
