For large diameter and large current measurement.

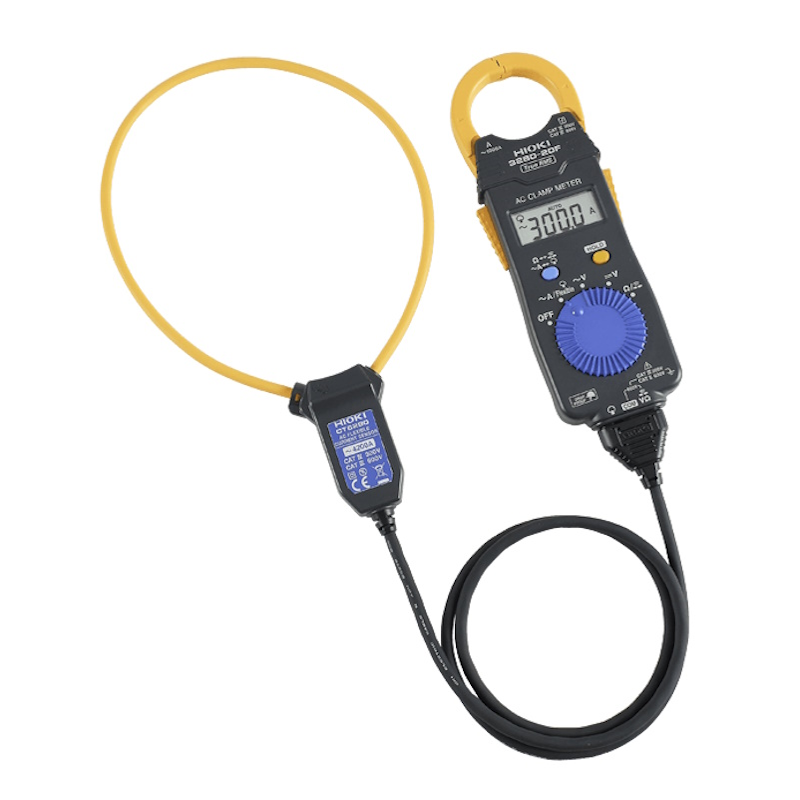

Used in combination with AC clamp meters CM3291/89, 3280-10F and similar products
Note: CT6280 is a flexible current sensor for measuring large currents. It is not suitable for measuring minute current such as leakage current.
For the CM3291/89, 3280-10F and similar products
| Maximum input current | 4200 A AC, continuous (50 Hz to 60 Hz) | |||||
|---|---|---|---|---|---|---|
| Core jaw dia. | φ 130 mm (5.12 in) (Cross-section diameter of sensor cable: φ 5 mm (0.20 in); Sensor-tip cap diameter: φ 7 mm (0.28 in)) | |||||
| Dimensions and mass | 42 mm (1.65 in) W × 65 mm (2.56 in) H × 18 mm (0.71 in) D (excluding the flexible loop and output cable), 71 g (2.5 oz) | |||||
| Cable length | 800 mm (31.5 in) | |||||
| Included accessories | Carrying Case C0205 ×1 | |||||
