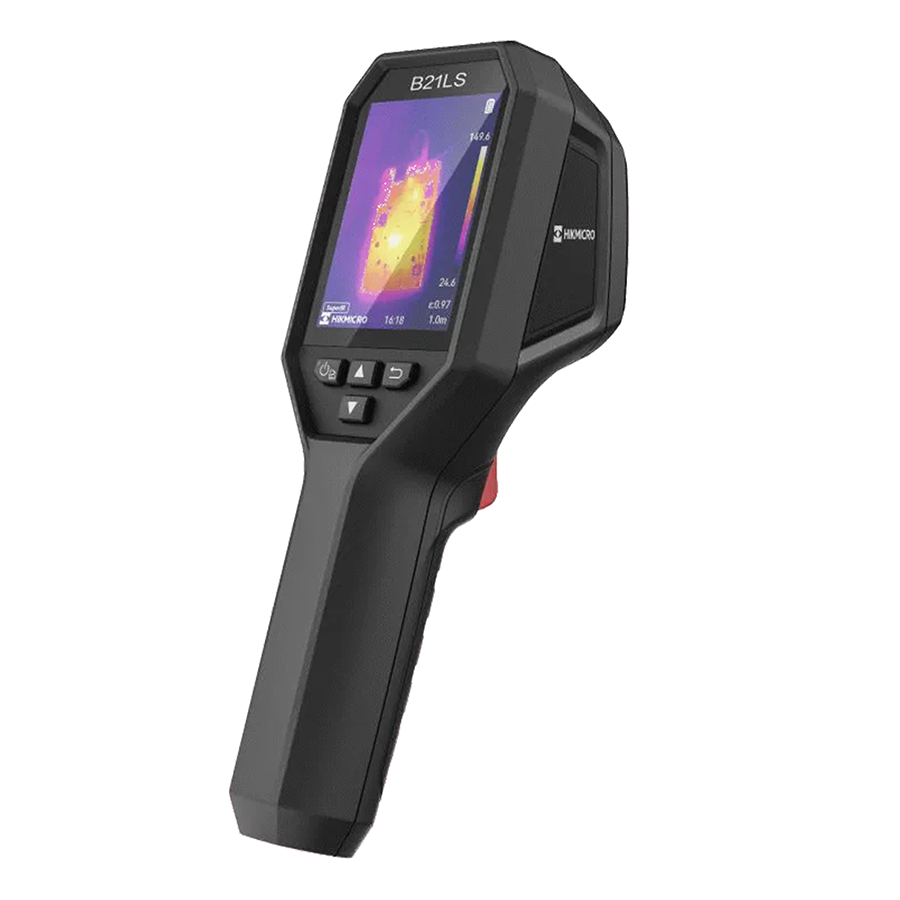

HIKMICRO B21LS Thermal Imaging Camera | 256×192, 550°C

Finding What the Naked Eye Can’t See

Every electrician, HVAC technician, and maintenance professional knows the most expensive faults are the ones you can’t see coming. A loose lug in a switchboard, a failing bearing in a motor, a moisture track behind a wall, or an overheating solar connector — these problems radiate heat long before they cause a breakdown, a fire, or an insurance claim. The challenge has always been catching that heat signature quickly, accurately, and with enough detail to justify a decision or back up a report.

The HIKMICRO B21LS handheld thermal imaging camera is built to close that gap. It pairs a genuine radiometric thermal detector with a set of scene-specific tools that take the guesswork out of interpreting what you’re looking at — so instead of squinting at a blurry heat blob, you get a clear, documented answer you can act on and hand to a client.

A Detector Built for Real Fault-Finding, Not Just Pretty Pictures

At the core of the B21LS is a 256 x 192 thermal detector (49,152 pixels) with an NETD (Noise Equivalent Temperature Difference) of less than 40 mK at 25°C. In plain terms, NETD is a measure of how small a temperature difference the sensor can actually distinguish from background noise — the lower the number, the more subtle the fault it can pick up. A sub-40 mK sensitivity rating means the B21LS is capable of resolving fine thermal gradients, which matters when you’re trying to catch an early-stage connection fault that’s only a couple of degrees above ambient, not a glowing hotspot that’s already about to fail.

To sharpen the practical detail further, HIKMICRO’s SuperIR image enhancement technology upscales both live view and captured images to 640 x 480 — effectively giving you a clearer, more defined thermal picture without needing a physically larger detector array. Combined with a 25 Hz image refresh rate, this means panning across a switchboard, a roofline, or a row of machinery stays smooth, rather than the laggy, stuttering feed that makes it easy to miss a fault while you’re moving the camera.

Temperature measurement range runs from -20°C to 550°C (-4°F to 1022°F), covering everything from cold-store and building envelope work at the low end through to industrial process equipment and switchgear at the high end. Accuracy is rated at a maximum of ±2°C/3.6°F or ±2% of reading (whichever is greater), specified for ambient temperatures between 15°C and 35°C and object temperatures above 0°C — figures worth knowing if you’re taking readings in a cold plant room or an unconditioned roof space in winter, where ambient conditions outside that band may affect measurement accuracy.

SuperScene Modes: Purpose-Built Presets for Specific Trades

Rather than leaving every technician to manually configure palettes and alarm thresholds from scratch, the B21LS ships with SuperScene intelligent scene modes: Custom, Water Leak, Insulation, Floor Heating, Electrical Faults, Solar Panel, Macro Mode, Insulation Pro, and Condensation. Each preset adjusts the camera’s display and analysis settings to suit the job at hand — an electrician chasing a hot terminal in Electrical Faults mode is working with different visual emphasis to a building inspector scanning a roof cavity in Insulation mode.

On top of the scene presets, Smart SuperScene Alarm functionality is available for Water Leak, Insulation, and Floor Heating scenarios, with configurable “more than” or “less than” thresholds and audible warning linkage. That means the camera can flag an anomaly for you in real time during a scan, rather than relying purely on the operator to spot a subtle colour shift on a small screen.

For technicians who need to get in close — PCB-level electrical work, component-level fault-finding, small connector inspection — the optional clip-on macro lens (HM-B201-MACRO) extends the B21LS down to fine-detail work, resolving features as small as 500 microns. It’s a genuinely useful accessory for anyone doing panel-level or board-level diagnostic work where a standard lens’s field of view is too broad to isolate the fault.

Built to Survive the Job, Not Just the Showroom

A thermal camera that lives in a ute tool bag or gets passed between site teams needs to handle more than gentle office use. The B21LS carries an IP54 ingress protection rating and has been drop-tested from 2 metres, giving it a genuine buffer against dust, light moisture, and the inevitable knock or drop that happens on an active job site. Working temperature range is rated from -10°C to 50°C, and storage temperature from -20°C to 60°C, so it’s designed to tolerate being left in a van overnight through most Australian seasonal extremes without drama.

Battery life is rated at approximately 6 hours of continuous running, with a full recharge taking around 3 hours via USB-C (5V/2A) — meaning it’ll comfortably see out a full day of inspections on a single charge for most trade workflows, and top up quickly overnight or during a lunch break using widely available USB-C chargers. At approximately 380 g and 221.7 x 73.5 x 123.8 mm, it’s light enough to carry all day without becoming a burden, while still offering a comfortable, purpose-built handheld grip rather than feeling like a repurposed consumer device.

Documentation, Sharing, and Getting Data Off the Camera

Every fault you find is only useful if you can document it and get it in front of the right person. The B21LS includes 16 GB of built-in eMMC storage (rated for up to approximately 30,000 radiometric JPEG images), so you can capture extensive job documentation without constantly managing storage. Images are saved in radiometric JPEG format, meaning the full temperature data behind each pixel is retained in the file — useful if you need to re-analyse an image back at the office rather than relying purely on what you saw on-site.

Built-in Wi-Fi (802.11 b/g/n, 2.4 GHz) connects the B21LS to the HIKMICRO Viewer App, letting you transfer images to a phone or tablet for quick sharing with a client, a supervisor, or straight into a compliance report — no cables required in the field. Back at the desk, HIKMICRO’s companion analysis software provides point, line, rectangle, circle, and polygon measurement tools for a more detailed review of captured images, which is particularly handy when preparing a formal inspection report rather than a quick site photo.

A Class II laser pointer helps with precise on-target aiming when you need to confirm exactly what area of a scene the temperature reading corresponds to — useful when briefing a client or cross-referencing a hotspot against a physical component.

Where the B21LS Earns Its Keep

Electrical contractors and switchboard inspections: The Electrical Faults SuperScene mode combined with sub-40 mK sensitivity makes the B21LS well suited to picking up early-stage loose connections, overloaded circuits, and unbalanced loads during routine switchboard and distribution board inspections — the kind of preventative check that can catch a fault before it becomes a callback or, worse, a fire risk.

HVAC technicians: From diagnosing refrigerant flow issues to checking compressor and condenser temperatures, or verifying even heat distribution across ductwork, the wide -20°C to 550°C range and Insulation/Floor Heating presets give HVAC techs a single tool that covers both the cold and hot sides of the job.

Building and facility inspectors: Insulation and Insulation Pro scene modes, paired with the Water Leak alarm function, support common building diagnostic work — locating missing or degraded insulation, tracking moisture ingress before it becomes visible mould or structural damage, and documenting findings for a client report.

Solar installers and maintenance teams: The dedicated Solar Panel SuperScene mode is built specifically for identifying underperforming cells, hotspots from micro-cracks, or faulty connections across PV arrays — a scan that’s far faster and safer than a manual panel-by-panel visual check, particularly on rooftop installations.

Automotive and industrial maintenance teams: From diagnosing brake and bearing overheating to catching motor and gearbox faults before a breakdown, the combination of a wide temperature range and fast 25 Hz refresh rate suits diagnostic work on moving or rotating equipment.

What’s in the Box

The B21LS ships with the handheld thermal camera itself, a USB 2.0 A to USB Type-C cable, a wrist strap, a factory calibration certificate, and a quick start guide. An optional clip-on macro lens (HM-B201-MACRO) and a protective pouch (HM-B01-POUCH) are available separately for technicians doing fine-detail or PCB-level work, or wanting extra protection for transport between sites.

A Practical Tool for Everyday Diagnostic Work

The HIKMICRO B21LS isn’t trying to be a lab-grade research instrument — it’s built as a genuinely useful, rugged, everyday diagnostic tool for trade professionals who need to find a fault, confirm it, document it, and move on to the next job. Between its scene-specific presets, wide temperature range, rugged IP54/2 m drop-rated housing, and Wi-Fi-enabled reporting workflow, it covers the core diagnostic needs of electrical, HVAC, building, solar, and industrial maintenance work in one handheld unit.

---

Technical Specifications Table

What is the temperature range of the HIKMICRO B21LS? The HIKMICRO B21LS measures temperatures from -20°C to 550°C (-4°F to 1022°F), with a maximum accuracy of ±2°C/3.6°F or ±2% of reading, specified for ambient temperatures between 15°C and 35°C.

What resolution does the HIKMICRO B21LS thermal camera have? The B21LS has a native IR resolution of 256 x 192 (49,152 pixels), with HIKMICRO’s SuperIR technology enhancing both live view and captured images up to 640 x 480 for greater displayed detail.

Is the HIKMICRO B21LS suitable for electrical fault-finding? Yes. The B21LS includes a dedicated Electrical Faults SuperScene mode and an NETD below 40 mK, allowing it to detect subtle temperature differences typical of early-stage loose connections, overloaded circuits, and unbalanced electrical loads.

Can the HIKMICRO B21LS be used for solar panel inspections? Yes. It includes a dedicated Solar Panel SuperScene mode designed to help identify underperforming cells, hotspot faults, and connection issues across PV arrays.

How long does the HIKMICRO B21LS battery last? The B21LS is rated for approximately 6 hours of continuous operation on a full charge, with a full recharge taking approximately 3 hours via USB-C (5V/2A).

Is the HIKMICRO B21LS waterproof or dustproof? The B21LS carries an IP54 ingress protection rating, providing resistance to dust ingress and light water splashes, and has been drop-tested from 2 metres — suited to genuine job-site handling rather than a fully waterproof or submersible rating.

Does the HIKMICRO B21LS connect to a phone or tablet? Yes. It has built-in Wi-Fi (802.11 b/g/n, 2.4 GHz) and pairs with the HIKMICRO Viewer App for wireless image transfer and sharing directly from the camera.
