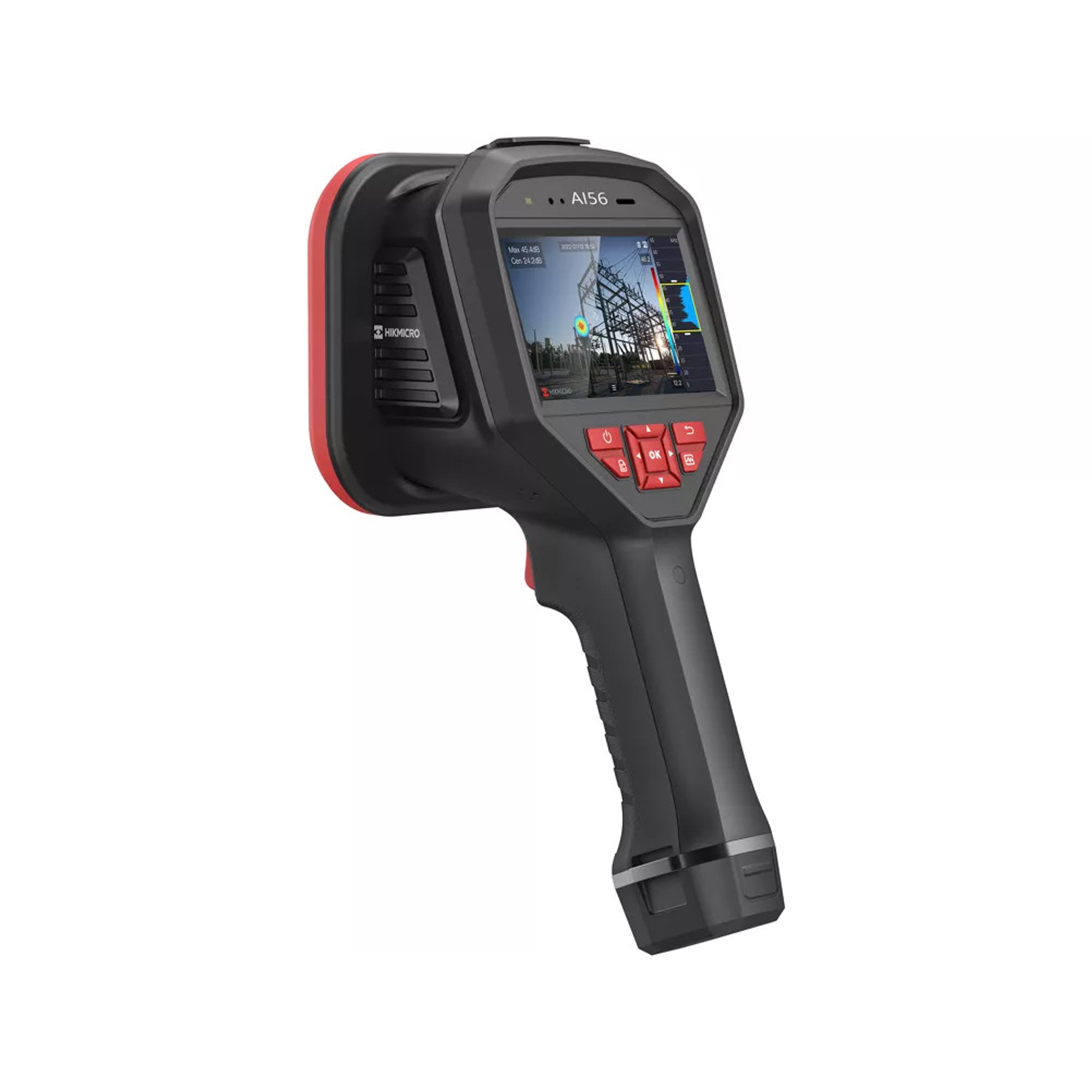

HIKMICRO AI56 Acoustic Imaging Camera: Superior Leak Detection and Discharge Analysis
Introducing the HIKMICRO AI56, the pinnacle in acoustic imaging technology designed for precise gas leak detection and partial discharge classification.
Engineers and maintenance teams in industrial settings recognize the value of this advanced tool, making it an essential component for ensuring safety, operational efficiency, and cost-effectiveness.

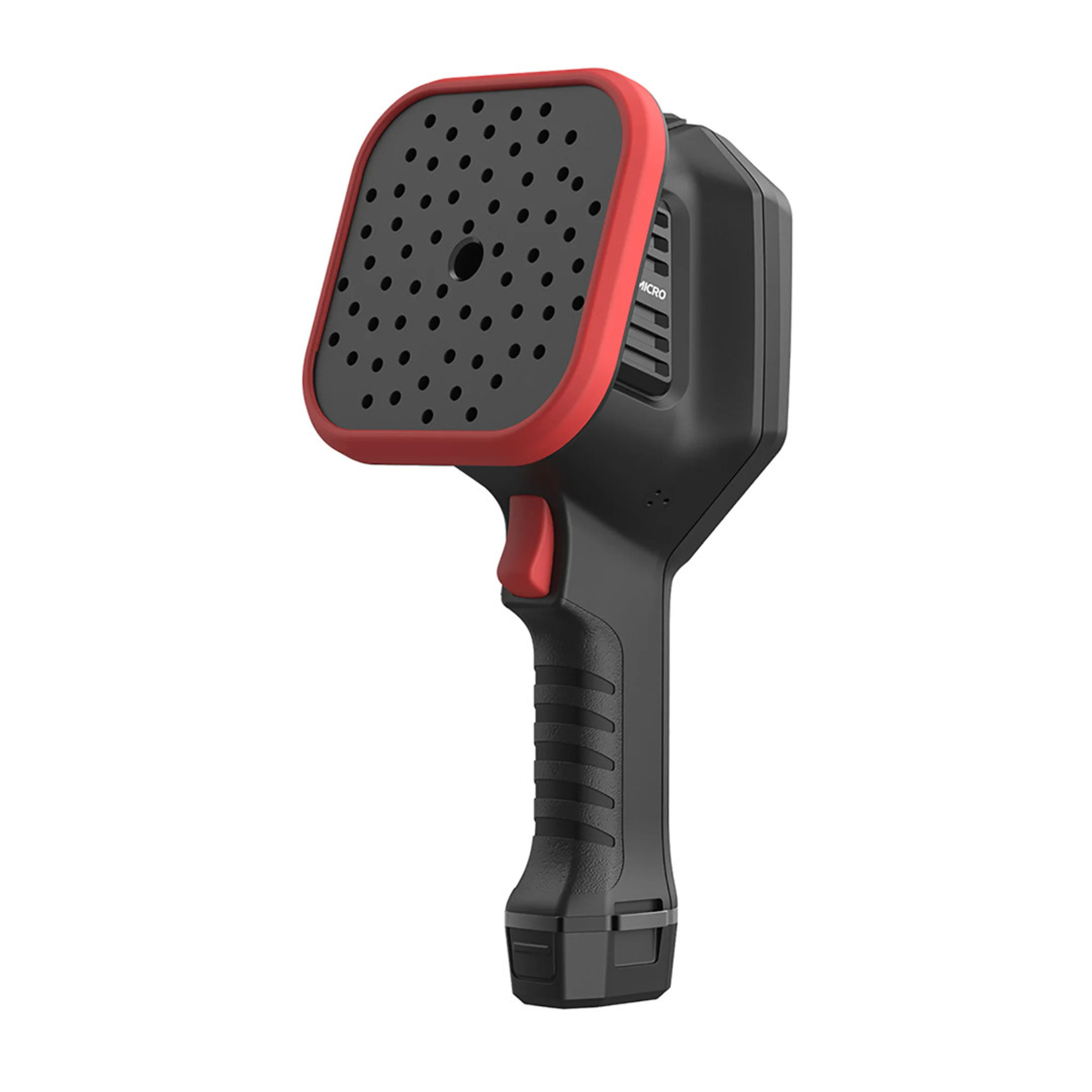

Thanks to its sophisticated 64 Low-noise MEMS microphones, the AI56 is armed with unparalleled sound source localization capabilities. This enables the AI56 to detect leaks and discharge issues with precision, even in the busiest and noisiest of environments.
Comprehensive Gas Leak and Discharge Detection
The HIKMICRO AI56 revolutionizes detection with an adjustable bandwidth range stretching from 0 kHz to 96 kHz, allowing you to effortlessly locate pressurized air leaks.
For electric systems, it deftly identifies four distinct types of partial discharge: corona, floating, surface, and particle. This capability is critical in preemptively addressing potential hazards that might lead to major equipment failures, thereby dramatically trimming down maintenance costs and reducing unscheduled downtimes.
Real-Time Insights and Cost Analysis
One of the standout features of the AI56 is its real-time display of estimated leak rate, cost, and severity, providing you with actionable insights at a glance.
Capable of identifying leaks as minuscule as 0.0003cfm, this tool is ideal for comprehensive audits or targeted “find it and fix it” operations. By instantly quantifying potential energy losses, the AI56 empowers you to make quick decisions boosting your operation’s energy efficiency and sustainability.
Advanced Partial Discharge Detection for High Voltage Systems
In Partial Discharge mode, the AI 56 system effectively detects corona discharge, floating discharge, surface discharge, and particle discharge in high voltage systems. These discharges can lead to equipment failure, making early detection crucial.
The AI 56 provides instant onscreen results, which can be easily saved for comprehensive documentation and reporting.
Enhance your high voltage system maintenance with this smart partial discharge detection solution.
User-Friendly Technology with Advanced Features
Built with a sharp 800 × 480 resolution, the 4.3” LCD touch screen grants you an intuitive interface for seamless navigation. The eight supportable acoustic palettes enhance visualization, making it simpler to interpret findings and address problems expediently.
Coupled with Analyzer Acoustic software for PCs, the HIKMICRO AI56 allows for detailed analysis and reporting without additional cost, enabling you to document field data for repairs, compliance audits, and energy rebate applications efficiently.
Rugged Performance for Demanding Conditions

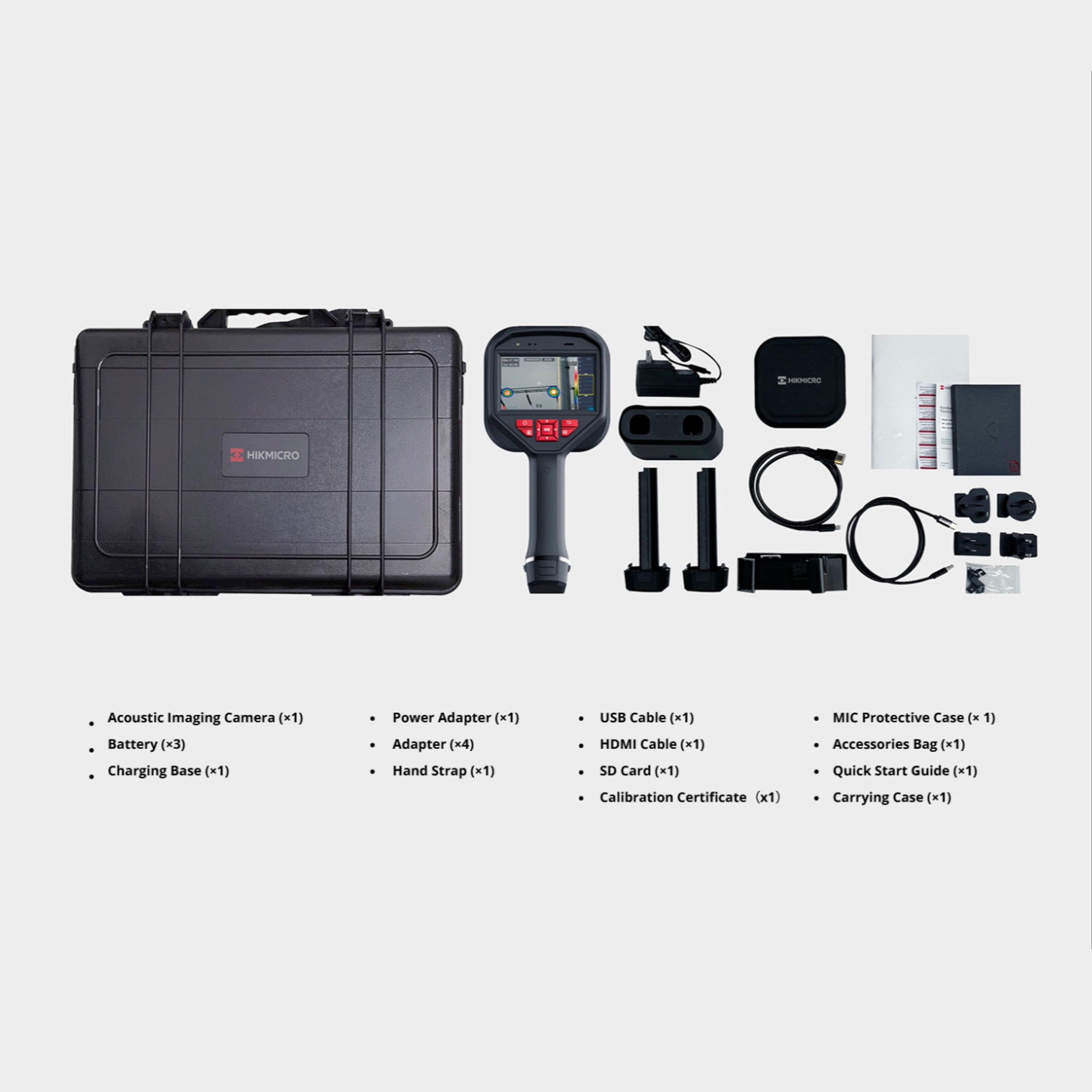

Designed to endure rigorous working conditions, the AI56 features three interchangeable lithium-ion batteries, affording up to 10 hours of continuous operation.
Whether you are conducting audits in sprawling factories or critical inspections across vast facilities, this hardy device is built to keep pace with your demanding work schedule.
Complete Image Annotations
The HIKMICRO AI56 provides features such as voice and text annotations for precise measurement documentation.
Streamlined for Excellence
Employing the HIKMICRO AI56 acoustic imaging camera means empowering your business with a tool that not only aids in spotting current issues but also works as a preventative solution to future problems.
This efficient, user-friendly, and robust system is your business’s ally in mitigating risks, ensuring safety, and optimizing maintenance expenditures. Embrace the future of sound detection with the HIKMICRO AI56 and experience groundbreaking improvements in your industrial operations.
Upgrade your facility’s performance and safeguard your investments with the intelligent and cost-effective HIKMICRO AI56 Acoustic Imaging Camera—your reliable partner in safety and efficiency. Optimize operations, reduce downtime, and achieve energy savings by incorporating this innovation into your toolkit today.
