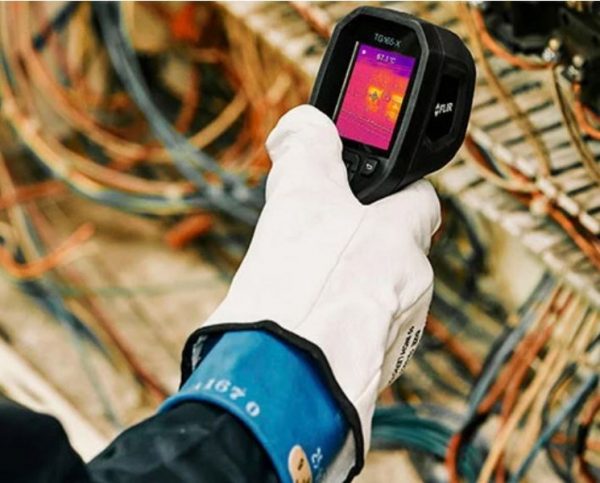

FLIR TG165-X MSX® Thermal Camera
The TG165-X MSX® Thermal Camera for electrical contractors, machine technicians, facilities maintenance engineers, home inspectors, and HVAC professionals.
Engineered for tough work environments, this upgrade to the popular TG165 provides an all-in-one diagnostics tool with a spot temperature gun and thermal imager, enhanced by FLIR’s patented Multi-spectral Dynamic Imaging (MSX).
The FLIR TG165-X dramatically reduces inspection and diagnostic time by helping you visually pinpoint the source of electrical, mechanical, and HVAC/R system faults.
Instead of searching for temperature anomalies with a single-spot IR thermometer, this non-contact temperature measurement and imaging tool displays a thermal picture of your target including any hot spots or cold zones that could indicate a problem.
See wires or components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser helps ensure you’re always targeting the right component for measurement while the drop-tested, portable design with easy-to-use buttons and settings help you complete the job quickly and stress-free.
With internal storage for up to 50,000 images and rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
FLIR TG165-X Specification
|IR resolution||80 x 60 pixels|
|Digital image enhancement||Included|
|Thermal Sensitivity /NETD||< 70 mK|
|Field of View (FOV)||51° (H) x 66° (D)|
|Minimum focus distance||0.89 ft. (0.3 m)|
|Distance-to-Spot ratio||24:1 TG165–X|
|Image frequency||8.7 Hz|
|Focal plane array /Spectral response range||Uncooled microbolometer /7.5 ~ 14 μm|
|Detector pitch||12 μm|
|Display resolution||320 x 240 pixels|
|Screen size||2.4 in. (portrait)|
|Color depth||24 bit|
|Display type||TFT technology|
