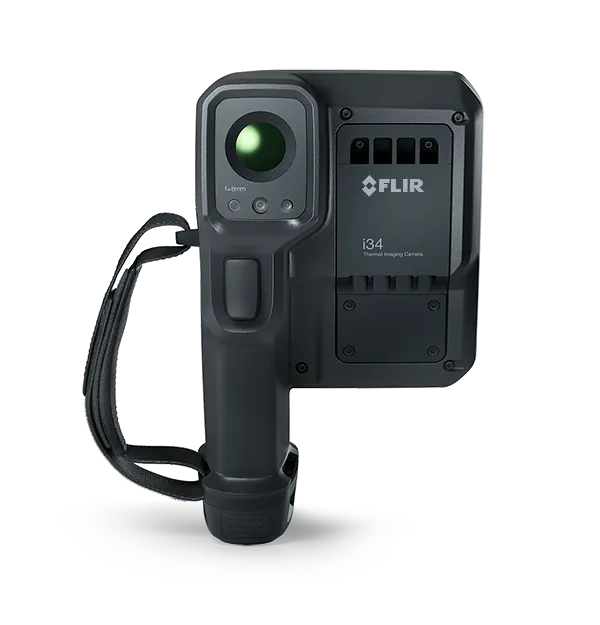

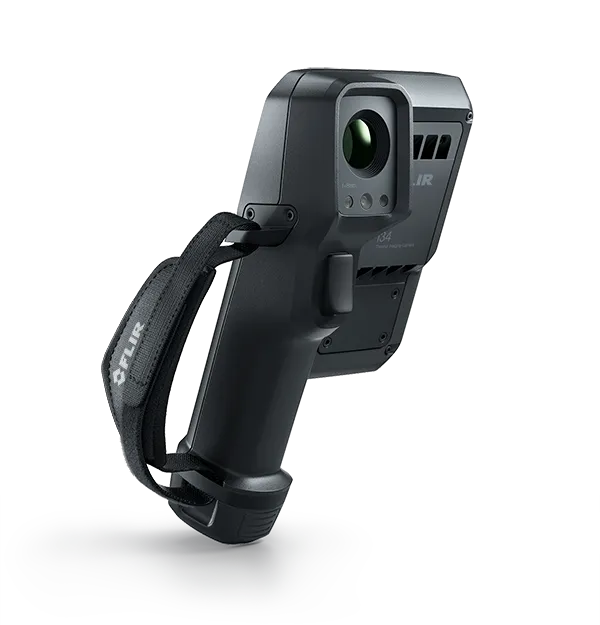

FLIR i34 App-Enabled Thermal Camera

The FLIR i34 thermal imaging camera makes NFPA 70B-compliant thermal inspections easy for all technicians.
This app-enabled thermal camera runs on the new ACE operating system, working like a smartphone for thermography. It’s cloud-connected and ready for your team. With a sharp 240×320 resolution, a 5-inch touchscreen, and Wi-Fi/Bluetooth, the i34 helps you improve asset reliability efficiently. This FLIR thermal camera is a powerful tool for electrical inspections and predictive maintenance.

FLIR i34 Datasheet

SKU: 18455-1101 Categories: All Thermal Imagers / Infrared Cameras, App-Enabled Thermal Cameras, FLIR, Thermal Imaging Tags: App-Enabled Thermal Camera, FLIR, Infrared imager, Thermal Imagers Brand: FLIR

The FLIR i34 App-Enabled Thermal Camera empowers technicians at any experience level to conduct fast, NFPA 70B-compliant inspections. It improves both asset reliability and safety. Built around the ACE operating system, it delivers a familiar, responsive user experience akin to a smartphone. It includes a full suite of FLIR, third-party, and custom apps for enhanced productivity.

With sharp 240 × 320 IR resolution, an intuitive 5-inch touchscreen, and integrated Wi-Fi/Bluetooth connectivity, the FLIR i34 streamlines every step. From capturing thermal images to cloud sharing and reporting happens seamlessly.

The i34 is engineered to simplify and speed inspection workflows. Customizable applications help reduce manual data entry and improve consistency. This ensures your teams work efficiently in any environment. The platform actively guides less-experienced users, offering built-in training, safety information, and remote support. This raises the quality of inspections across your organization.

Documentation and communications are seamless with direct cloud uploads to FLIR Ignite. It has compatibility with FLIR Assetlink for advanced asset management.

Rugged, portable, and IP54-rated, the FLIR i34 is designed for demanding industrial settings. It addresses key decision-making needs with real-time infrared analytics and time-saving automation. Whether you’re conducting electrical, mechanical, or building inspections, the i34 delivers the actionable intelligence needed to reduce downtime. It ensures compliance and protects equipment investments—all with the backing of trusted FLIR expertise.

Key Features

240 × 320 thermal resolution for sharp, detailed imagery
ACE operating system with app-based workflow customization
5” capacitive touchscreen for intuitive operation, even with gloves
Wi-Fi and Bluetooth connectivity for instant uploads to FLIR Ignite and remote device integration
NFPA 70B compliance support through robust measurement and analytics features
Onboard guidance, training, and remote support tools
IP54 rating for dust and water resistance, built for industrial use

Weight	.5 kg

Specification

FLIR i34 Specifications

Imaging Data
IR Resolution	240 × 320 pixels
Thermal Sensitivity / NETD	<40 mK at 86°F (30°C)
Field of View (FOV)	38 × 49°
Minimum Focus Distance	1.6″ (0.5 m)
Spatial Resolution (IFOV)	2.9 mrad
F-number	1.4
Image Frequency	30 Hz
Focus	Fixed focus
Spectral Range	7.5 to 13 μm
Color Palettes	Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
User Interface
Display	5″ (12.70 cm) 720 × 1280 color LCD
Touch Screen	Capacitive touch
Text	Text annotation on image using onscreen keyboard
Flashlight	Manually activated bright LED
Image Adjustment	Automatic/Manual
Laser Pointer
Laser	Class 2
Laser Alignment	Position of laser pointer automatically displayed on the infrared image
Image Presentation Modes
Image Modes	MSX, Thermal, Picture-in-Picture, Digital camera
Measurement
Temperature Range	-4 to 392°F (-20 to 200°C) 50 to 842°F (10 to 450°C)
Accuracy	±2°F (±1°C) or ±2%
Measurement Analysis
Spotmeter	Center spot, box with minimum/maximum
Isotherm	Above, Below
Delta T	Yes, NFPA 70B compliant
Emissivity Correction	Variable from 0.01 to 1.0
Emissivity Table	Predefined materials
Measurements Correction	Emissivity, matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation
1-touch Level/Span	Yes, automatic contrast
Storage of images
File Formats	Standard JPEG, 14-bit measurement data included
Storage Media	Internal memory, onboard Flir Ignite cloud and Asstetink connectivity
Digital Camera
Resolution	8 MP, Autofocus
FOV	50.5 × 64.5°
Data Communication Interfaces
Cellular	No
Interfaces	USB-C: Data transfer to and from PC and Mac
Wi-Fi	IEEE 802.11 a/b/g/n (2.4 and 5 GHz)
Radio
Operating Frequency	WLAN 2.4 GHz: 2412 to 2462 MHz WLAN 5 GHz: 5150 to 5250 MHz
Power Supply
Battery Type	Rechargeable Lithium-ion battery
Battery Operating Time	4 hours at 77°F (25°C), ambient temperature and typical use
Charging System	Battery is charged inside the camera or in specific charger (included)
Charging Time	2 hours in charger / 4 hours to 90% capacity in-camera
Power Management	Automatic shut-down
AC Operation
AC Operation	Optional accessory: 45 W AC adapter, 100 to 240 V AC input, 15 V DC, 3 A output to camera
Drop Test	6′ (2 m)
Encapsulation	IP54 (IEC 60529)
Operating Conditions	5 to 122°F (-15 to 50°C) 95% relative humidity
EMC	EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
Radio Spectrum	ETSI EN 300 328, ETSI EN 301 893, FCC 47 CFR Part 15, RSS-247
Shock	25 g (IEC 60068-2-27)
Vibration	2 g (IEC 60068-2-6)
Physical data
Dimensions	8.9 × 2.9 × 2.9″ (225 × 136 × 73 mm)
Weight	1.76 lbs (0.8 kg)
