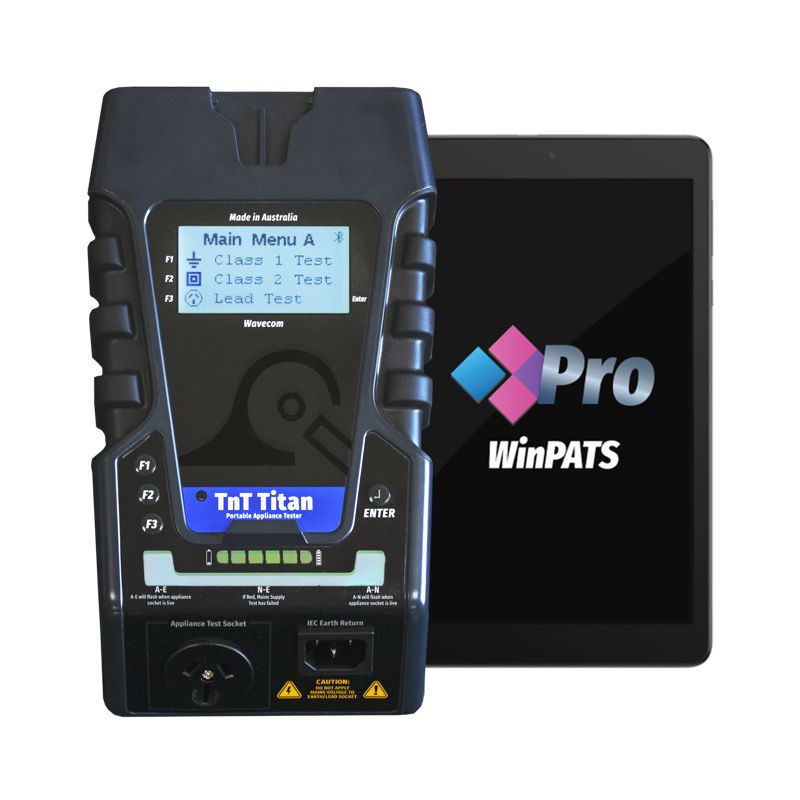

The TnT Titan is the latest generation of handheld PAT Tester from Wavecom, and is their most advanced Appliance Tester yet. With the flexibility of lithium ion battery power, the TnT Titan gives you greater versatility with your testing than ever before. The internal lithium ion battery comes with safety focused design and more capacity to run the tester for up to 3000 sets of tests on a single charge.
The new TnT Titan design has isolation functionality built in, eliminating the need for bulky external isolation transformers, making RCD tests quicker and easier.The TnT Titan is designed for high power efficiency and faster data processing and also comes with AC/DC power operation.
Where the TnT Titan truly sets itself apart from the rest is the Bluetooth module and accompanying WinPATS App. Using our new Android app, you can now connect your tester to compatible tablets, allowing you to control your tester, record results, create reports and more, all from the palm of your hand. The Bluetooth module features the latest Bluetooth Low Energy technology, which boasts 50 metre range and significantly less power drain than older Bluetooth standards, giving you greater battery life than ever before.
Designed and manufactured in Australia to meet stringent testing requirements – some of the tightest in the world – TnT Titan now sets its own new standard of reliability and ruggedness, and now features a 24 month conditional warranty.
Wavecom TnT Titan Features
- Simplified one button test procedures
- Class I, Class II, RCD, Leakage, Extension Lead tests
- 10 amp operation (20 Amp operation optional)
- True RCD Trip Time and Ramp Up Test
- Virtually unlimited equipment/items storage through WinPATS support plan
- Bluetooth Low Energy Technology with inbuilt antenna, with over 50 metre range
- High power Lithium Ion Battery – Conduct over 3000 sets of Tests and Tag Prints on a single charge
- Built In Isolation Transformer circuitry for portable RCD Testing
- Real time clock for date and timestamps
- Meter mode function
- Large fonts during tests showing results and progress
- Advanced Bluetooth Laser Scanner (Optional)
- Fully Australian designed & manufactured
- Conditional 24 month warranty
Wavecom TnT Titan PAT Tester Specification
|Mains Supply Tests||Checks Polarity and continuity of mains supply by LED indicators (A-N, A-E, and N-E). (Flashing red LED indicates test fail)|
|Class I Tests- Earthed Appliance||Appliance Check: Ensures appliance is plugged in and turned on. |
Earth Bond Test: 200mA test current. Pass level Less than 1.0 Ω. Measurement: 0.01Ω to 10 Ω. Insulation Test: 500VDC / 250VDC. Pass level Greater than 1M Ω. Measurement: 0.1Ω to 10MΩ.
*See also Leakage Test
|Class II Tests – |
Double Insulated Appliance
|Appliance Check: Ensures appliance is plugged in and turned on. |
Insulation Test: 500VDC / 250VDC. Pass level greater than 1MΩ. Measurement: 0.1Ω to 10MΩ.
*See also Leakage Test
|Extension Lead Tests||Earth Bond Test: 200mA test current. Pass level Less than 1Ω. Measurement: 0.01Ω to 10.0Ωs Insulation Test: 500VDC / 250VDC. Pass level Greater than 1MΩ. Measurement: 0.1Ω to 10.0MΩ. Continuity/Polarity Test: 250VAC check continuity and polarity of leads. Displays Pass/Fail|

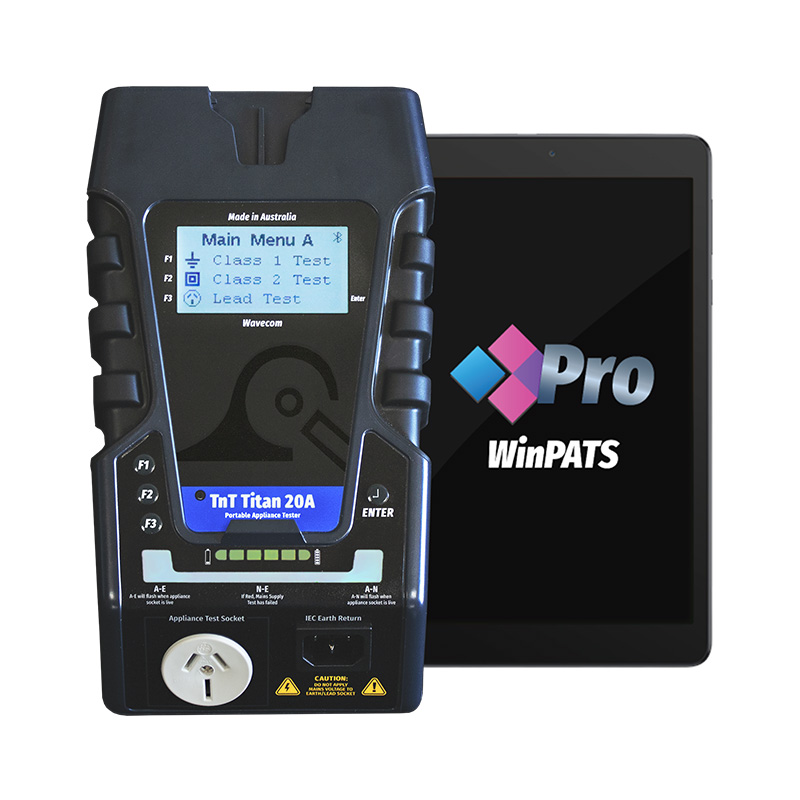

|Power Measurement||Leakage Current: 0 to 30.0mA at 200 to 265V Load Current: 0.0 to 10Amp (20Amp for TnT Titan 20A) |
Voltage: 200 to 265VAC – Power Factor: 0.00 to 1.00 Apparent Power: 0 to 2400VA -Power 0 to 2400W
|Meter Mode®||Green flashing LED denotes Meter Mode is engaged Load Current: 0.0 to 10Amp |
Voltage: 200 to 265VAC Apparent Power: 0 to 2400VA Power: 0 to 2400W
|RCD Tests||Trip Current: 2 to 500mA in 1mA steps – User selectable. |
Trip Time: 0 to 3,000ms at .001sec resolution.
Current Ramp Trip Test: 0 to 500mA in 1mA increments.
|Leakage Tests||Leakage Current: 0 to 30.0mA at 200 to 265V |
Earth Leakage Test: 240VAC Mains. Pass level 1, 2.5, 5.0 mA leakage test levels Note 1: Pass level for CLASS 1 is 5 mA; pass level for CLASS 2 is 1 mA
Note 2: Leakage test may be performed if a standard CLASS 1 or CLASS 2 is not possible
|Memory||5000 Items Local Storage, virtually unlimited Cloud Storage with the new WinPATS App|
|Battery||4800 mAH, 44WH, Charge Time Around 4 Hours|
