The Connection Problem That Wastes Your Time on the Job
You’re mid-diagnosis, current clamp in hand, and your oscilloscope is ready to go — except the clamp outputs banana plugs and the scope only takes BNC. It’s a mismatch that kills momentum, especially when you’re under the bonnet of a vehicle or working to a tight service schedule.
This isn’t a niche problem. Automotive oscilloscopes from brands like Hantek, PicoScope, and TiePie are BNC-input instruments, while a huge range of current clamps, breakout leads, and test accessories terminate in the universal 4mm banana format. Without the right adapter, you’re either hunting for a workaround or pulling out a completely different lead set.
The PJP 7043-IEC solves this problem outright.
What the PJP 7043-IEC Actually Does
The 7043-IEC is a purpose-built signal adapter manufactured by Electro-PJP — a French brand with decades of pedigree in precision test accessories. It converts a single male BNC connector (oscilloscope end) into two female 4mm banana sockets (red and black), allowing any banana-terminated test lead or current clamp to plug directly into a BNC-input instrument.
The colour-coded sockets (red positive, black negative/ground) eliminate polarity confusion — critical when you’re reading waveforms and signal orientation matters. Both the BNC plug and the 4mm sockets are fully shrouded, so there’s no exposed live metal during connection or disconnection.
It’s compact, it’s robust, and once you have one in your kit, you’ll wonder how you ever managed without it.
Where This Adapter Earns Its Keep

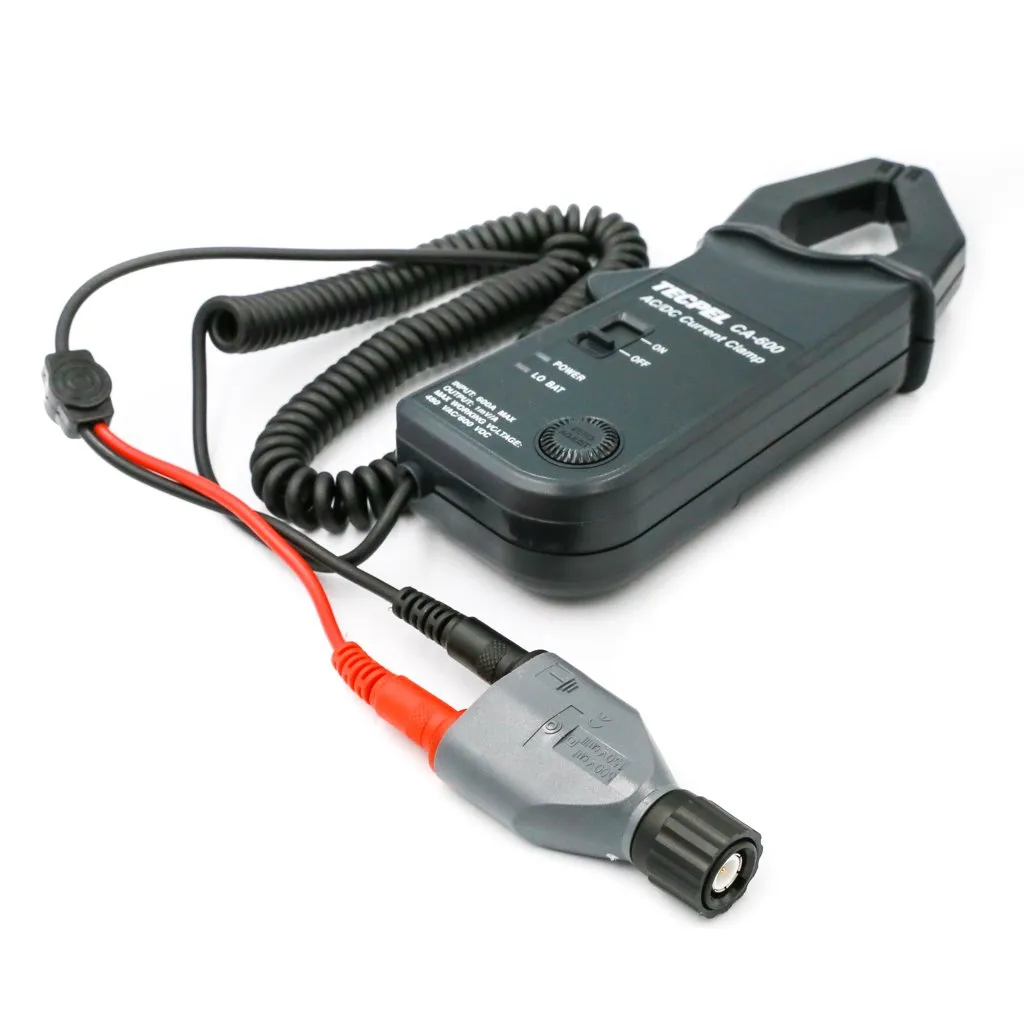

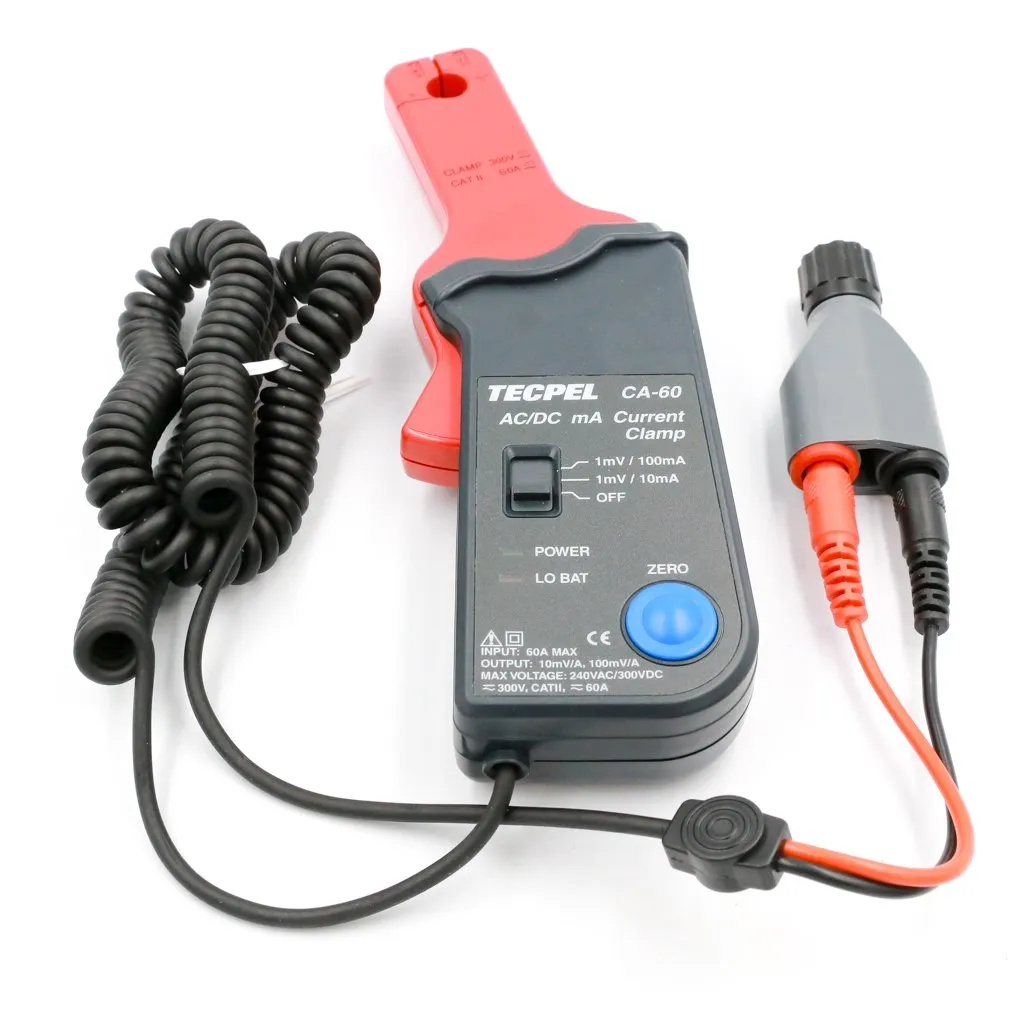

Automotive Diagnostics This is the 7043-IEC’s home territory. Pair it with the TCA 60 (60 A) or TCA 600 (600 A) current clamps and you’ve got a non-invasive current measurement path straight into your automotive oscilloscope. Starter motor current draw, injector waveforms, alternator output — all readable without breaking into the circuit. Perfect for auto electricians and automotive technicians doing first-look diagnostics.
Electrical Trade & Maintenance Electricians and industrial maintenance technicians who use oscilloscopes for waveform capture on motor drives, inverters, or switchgear can use this adapter to bring standard banana-plug current probes into their scope’s BNC input. Saves carrying multiple lead sets to site.
Lab & Bench Testing Electronics technicians and R&D engineers working on benches equipped with BNC-input oscilloscopes can use the 7043-IEC to interface any 4mm banana test probe or current transducer without signal compromises. The adapter’s compact form factor keeps bench clutter to a minimum.
Training & Education TAFEs, RTOs, and university engineering labs typically stock a mix of equipment — oscilloscopes with BNC inputs alongside current clamps and multimeter leads with 4mm terminations. The 7043-IEC bridges the gap cleanly, reducing the number of adapter cables that need to be stocked.
Field Service & Calibration Calibration technicians who carry portable oscilloscopes alongside calibrated current sources or clamps will find this adapter fits neatly in a carry case. Rated to IEC 61010-031:2015 (500 V CAT I / 150 V CAT III), it handles typical indoor field service signal measurement with the appropriate insulation class. Note: this adapter is rated for indoor use only — it is not intended for outdoor or exposed-environment deployment.
Technical Specifications
| Specification | Value | Why It Matters |
|---|---|---|
| Connector Type | Male BNC to 2× Female 4mm Banana | Direct interface between oscilloscope BNC inputs and standard 4mm test accessories |
| Voltage Rating (CAT I) | 500 V | Suitable for electronic and low-energy circuit work including automotive systems |
| Voltage Rating (CAT III) | 150 V | Appropriate for distribution-level measurements within that category — check your application |
| Current Rating | 3 A max (at +40 °C) | Adequate for signal-level current paths; not for power delivery |
| Insulation | Reinforced | Provides electric shock protection equivalent to double insulation — safer contact during use |
| Ground Configuration | Grounded or floating ground | Flexible for both earthed and isolated measurement setups |
| Socket Spacing | 19 mm (¾ inch) | Complies with double banana plugs and component holders for broad compatibility |
| Socket Identification | Red = signal (BNC centre) / Black = ground (BNC outer) | Colour coding prevents polarity reversal when capturing waveforms |
| Shrouding | Fully shrouded BNC plug & banana sockets | No exposed live metal, minimising shock risk during connection |
| Pollution Degree | 2 | Rated for normal lab and workshop environments with non-conductive pollution |
| Operating Temperature | +5 °C to +40 °C | Covers standard indoor workshop and lab conditions |
| Storage Temperature | -20 °C to +80 °C | Wide storage range suits tool kit and vehicle storage environments |
| Relative Humidity | 80% max (up to 31 °C), decreasing to 50% at 40 °C | Defines safe operating humidity range for indoor environments |
| Altitude | 2,000 m maximum | Suitable for most Australian field service locations |
| Use Environment | Indoor use only | Not rated for outdoor or exposed-environment use |
| Conductor Materials | Nickel-coated brass, steel, red annealed copper | Quality materials for reliable signal path and corrosion resistance |
| Weight | 0.029 kg | Negligible addition to any test kit |
| Compliance Standard | EN / IEC 61010-1 and EN / IEC 61010-031:2015 | Dual standard compliance covering both general measurement equipment and hand-held probe assemblies |
| Environmental Compliance | RoHS and REACH compliant | Meets EU hazardous substance restrictions — relevant for procurement and facility compliance |
| Certification | CE Approved (Low Voltage Directive 2014/35/EU) | Meets European conformity requirements; appropriate for professional use |
| Origin | Designed and manufactured in France | In production since 1995 — a proven, long-standing product |
Compatibility — What It Works With
The PJP 7043-IEC is a universal adapter designed to work with:
- Oscilloscopes with BNC inputs: PicoScope automotive, Hantek series, TiePie, Rigol, Keysight, Tektronix, and most bench and automotive scopes
- Current clamps with 4mm banana outputs: Including the TCA 60 (60 A) and TCA 600 (600 A) automotive current clamps
- Double banana plugs and component holders: The 19 mm (¾ inch) socket spacing is the standard double banana pitch, so it accepts double banana plugs directly
- Breakout leads and breakout boxes with 4mm banana terminations
- Standard multimeter-style test leads in situations where scope input is needed
- Current transducers and signal output probes terminated in 4mm format
It is not a power adapter — the 3 A current limit means it’s designed for instrumentation signal paths, not high-current power connections. It is also rated for indoor use only.
Frequently Asked Questions
What is the PJP 7043-IEC used for? The PJP 7043-IEC is a signal adapter that lets you connect test accessories with 4mm banana plug outputs — such as current clamps, breakout leads, or test probes — directly to an oscilloscope or measuring instrument with a BNC input. It’s widely used in automotive diagnostics, electronics testing, and lab environments.
Will the PJP 7043-IEC work with my PicoScope or Hantek automotive oscilloscope? Yes. The 7043-IEC fits any standard BNC input, including those on PicoScope, Hantek, and TiePie automotive oscilloscopes. It’s specifically designed for this type of application — connecting 4mm banana-terminated current clamps to BNC-input scopes.
What current clamps is this adapter compatible with? It works with any current clamp that outputs a 4mm banana plug signal, including the TCA 60 (60 A) and TCA 600 (600 A) automotive current clamps. It’s also compatible with other 4mm banana-output current transducers and signal probes within the 3 A signal path limit.
Is the PJP 7043-IEC safe to use in automotive environments? Yes. The adapter is rated to IEC 61010 500 V CAT I and 150 V CAT III with reinforced insulation, pollution degree 2. For automotive 12 V / 24 V systems and signal measurement work, this rating is appropriate. Both the BNC plug and banana sockets are fully shrouded for safe connection.
Can I use this adapter for mains voltage measurements? No. The adapter carries a 500 V CAT I rating and 150 V CAT III rating. CAT I covers electronics circuits only — it is not rated for direct connection to mains supply circuits (which require CAT II at minimum). It is also rated for indoor use only. Use this adapter for signal-level and low-voltage measurement paths in indoor environments only.
Why are the banana sockets colour coded red and black? The red socket is positive and the black socket is the negative/reference (ground). Colour coding ensures you connect your leads in the correct polarity, which matters when capturing waveforms where phase or polarity is significant — such as current direction on an injector circuit or motor winding.
Is the PJP 7043-IEC the same as the PJP 7043 (without IEC)? The “IEC” suffix indicates that this version meets IEC 61010 safety standards with reinforced insulation. If you’re using this in any professional, trade, or compliance-relevant environment, the IEC variant is the correct choice.
How compact is this adapter? Will it fit in a tool case? The 7043-IEC is a small adapter — 63 mm total length (20 mm BNC section + 43 mm body), 19 mm wide at the banana socket end, and weighing just 0.029 kg. It fits easily into a test lead pouch or tool case alongside your oscilloscope leads and current clamps.
What adapter connects a current clamp to an oscilloscope? A BNC to 4mm banana adapter — such as the PJP 7043-IEC — connects a current clamp with 4mm banana plug outputs to an oscilloscope with a BNC input. The adapter converts the BNC socket on the scope into two female 4mm banana ports (red and black), allowing direct connection of current clamps, breakout leads, and probes. This is the standard solution used in automotive diagnostics and electronics bench work.
What is a BNC to banana adapter used for in automotive diagnostics? In automotive diagnostics, a BNC to banana adapter is used to connect current clamps (which output 4mm banana plugs) to automotive oscilloscopes (which have BNC inputs). This allows technicians to capture current waveforms — such as injector current ramp, starter motor draw, or alternator output — directly on the oscilloscope without modifying cables or circuits. The PJP 7043-IEC is a purpose-built example of this type of adapter.
Is the PJP 7043-IEC compatible with PicoScope? Yes. The PJP 7043-IEC plugs directly into any standard BNC input, including those on PicoScope automotive diagnostic oscilloscopes. It gives you two female 4mm banana sockets, enabling current clamps and 4mm banana-terminated probes to connect straight to the scope. It’s fully insulated, CE approved, and rated to IEC 61010 for safe professional use.
